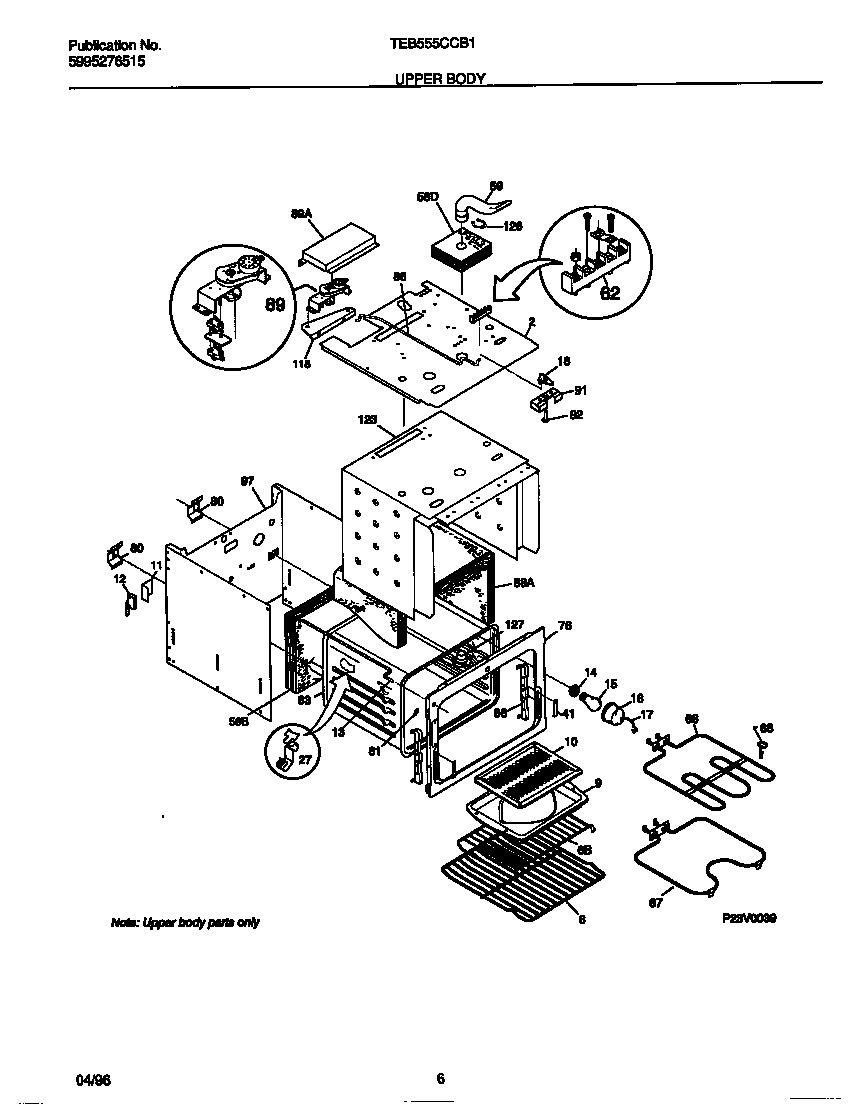

TEB555CCB1 04 – UPPER BODY

TEB555CCB1 04 – UPPER BODY

Written by

in

TEB555CCB1 04 – UPPER BODY

Products

PositionProduct
*13608SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
2WCI 5303301263
6WCI 5303299366
6WCI 5303305676
9WCI 5303310521
10WCI 5303310520
12SWITCH – OVEN LIGHT
13WCI 3204114
13WCI 3202077
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
58INSULATION, OVEN WRAPPER
58INSULATION-WRAP
58WCI 5303317714
59WCI 3016331
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
76WCI 5303296326
80WCI 5303301261
81WCI 3201632
83LINER-OVEN
86WCI 3201631
88WCI 3016241
89WCI 3016296
89LATCH, MOTOR
91WCI 3019069
92AXLE – HINGE (2)
97WCI 318066503
118BRACKET-MOTOR MTG
123WCI 3202445
126Clip,insulator
127TUBE-OVEN VENT
