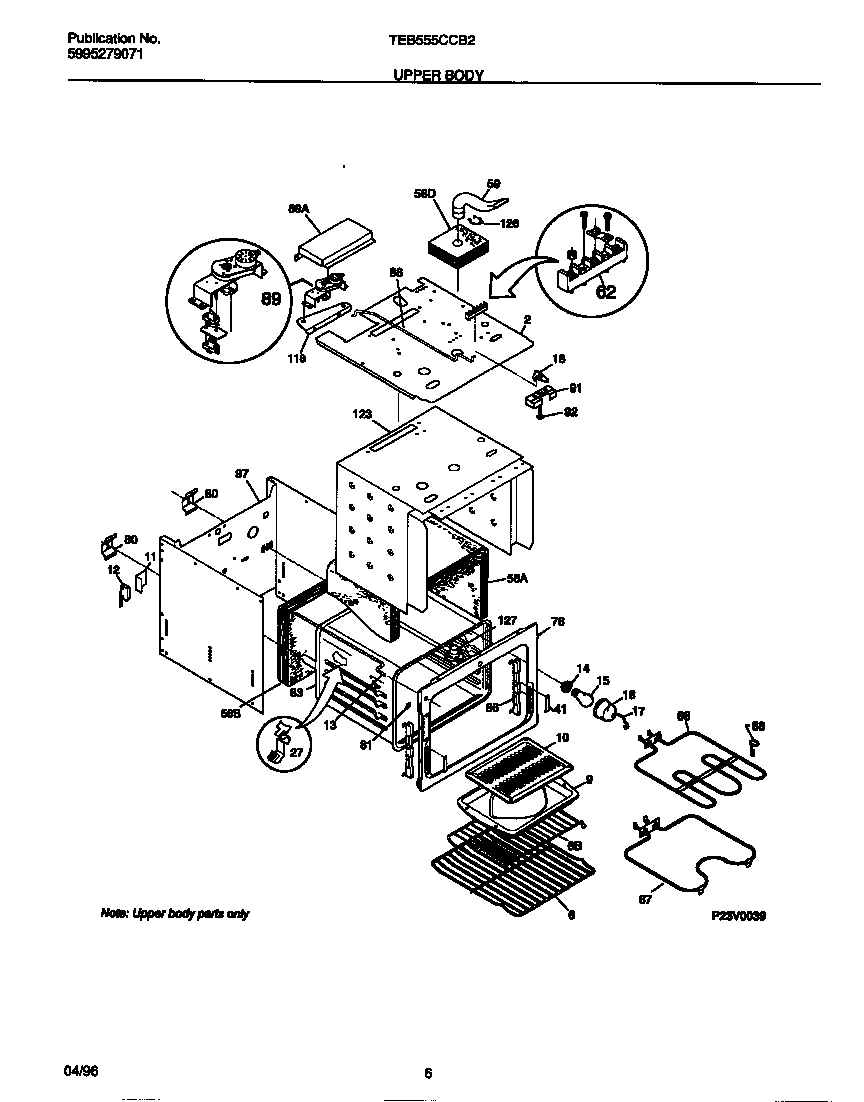

TEB555CCB2 04 – UPPER BODY

Products

PositionProduct
2WCI 5303301263
6WCI 5303299366
6WCI 5303305676
9WCI 5303317977
10WCI 5303317976
11WCI 5303308448
12SWITCH – OVEN LIGHT
13WCI 3202077
13WCI 3204114
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
275303284616 Frigidaire Range Bulb Clip Thermostat
41WCI 3019063
58INSULATION, OVEN WRAPPER
58WCI 5303317714
58INSULATION, OVEN BACK
59WCI 3016331
62SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
625304409888 Frigidaire Oven Terminal Block with Hardware
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
76WCI 318056131
80WCI 5303301261
81WCI 3201632
83WCI 318089501
86WCI 3201631
88WCI 3016241
89WCI 3016296
89LATCH, MOTOR
91HOUSING-DOOR LATCH
91WCI 3019069
92AXLE – HINGE (2)
97WCI 318066503
118BRACKET-MOTOR MTG
123WCI 3202445
126Clip,insulator
127TUBE-OVEN VENT
