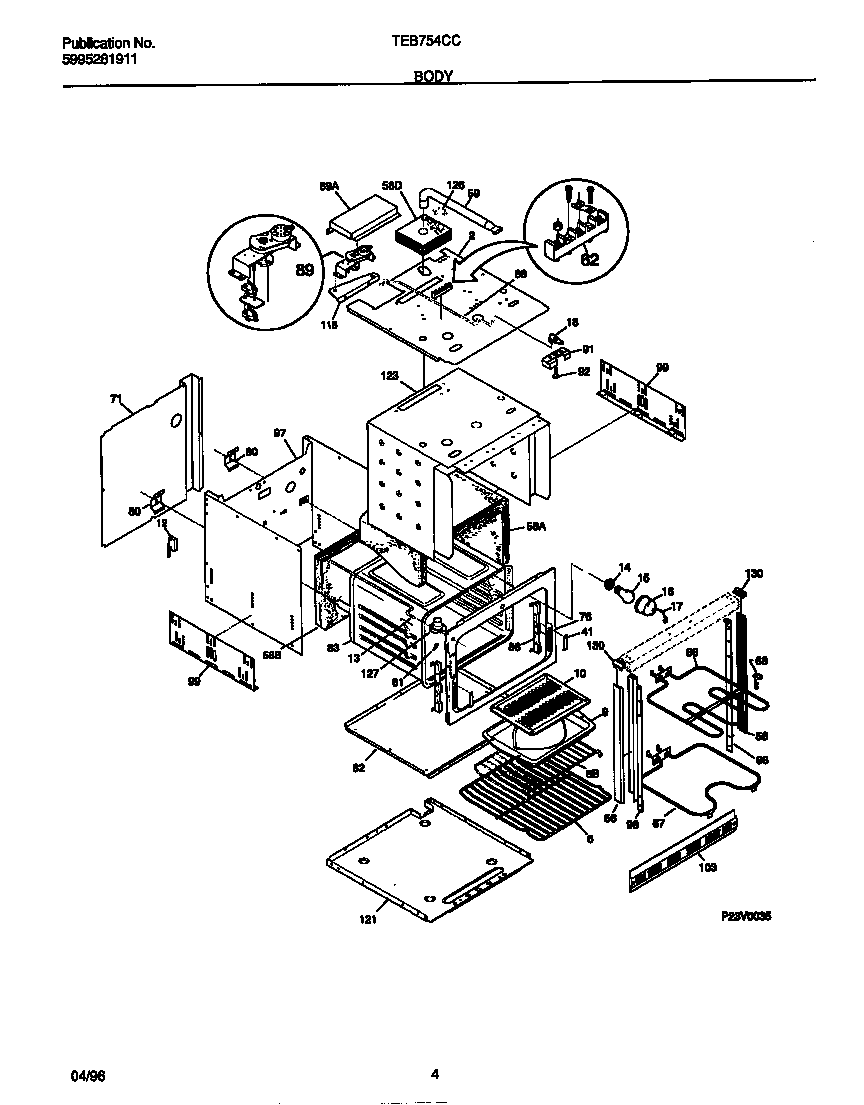

TEB754CCB2 03 – BODY

TEB754CCB2 03 – BODY

Written by

in

TEB754CCB2 03 – BODY

Products

PositionProduct
*96285WCI 3201881
*962875304500008 Frigidaire Oven Screw
*96284WCI 3018802
*9628608002868 Frigidaire 0 Screw Assembly
*96288WCI 5303319292
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303317977
10WCI 5303317976
12A318394803 Frigidaire Oven Switch
12CWCI 5303308447
12BFASTENER, SWITCH
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
41WCI 3019063
56WCI 5303318690
56TRIM-BODYSIDE, BLACK, (2)
58INSULATION-WRAP
58WCI 5303311220
59WCI 3016301
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83WCI 318089500
86WCI 3201631
88WCI 3016241
89LATCH, MOTOR
89WCI 3016296
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98AWCI 318029300
98BWCI 318029301
99318284201 Frigidaire PANEL
103WCI 5303316773
118WCI 5303308461
121WCI 5303304700
123WCI 5303299270
126Clip,insulator
127TUBE-OVEN VENT
130WCI 5303271107
130WCI 5303271106
