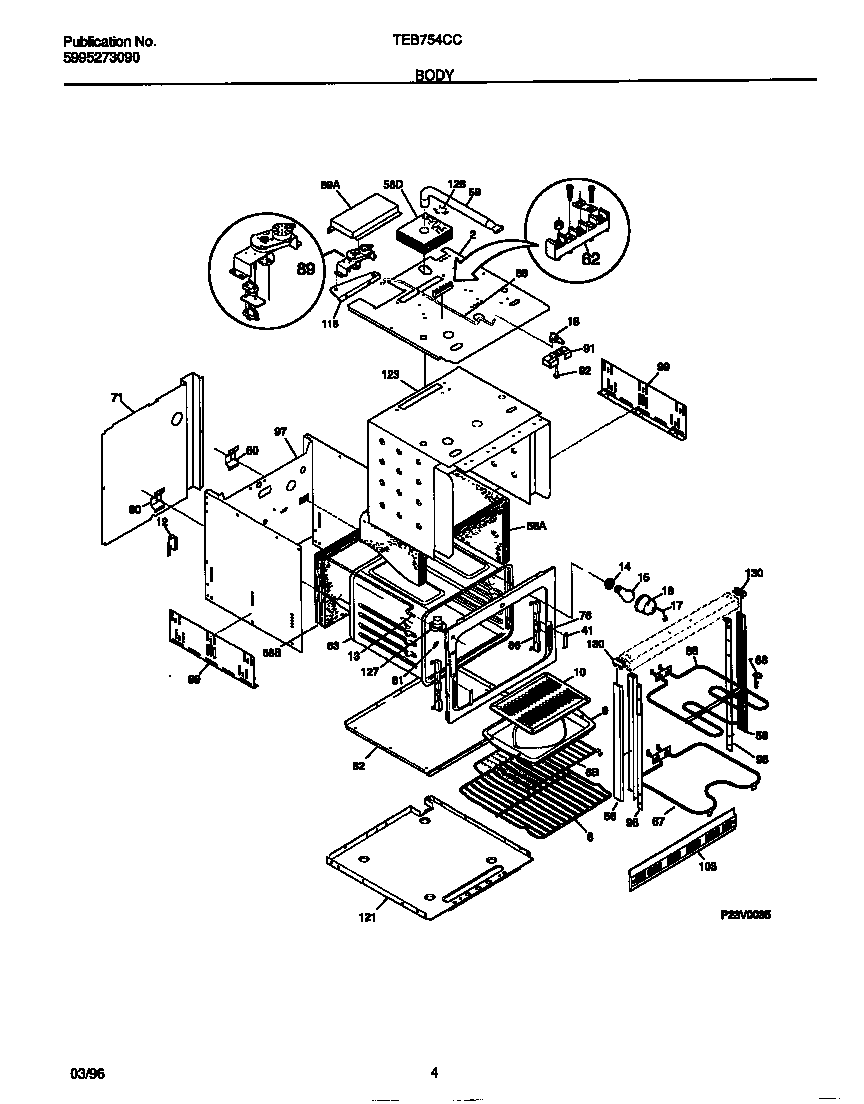

TEB754CCBA 03 – BODY

Products

Position	Product
*35165	5304500008 Frigidaire Oven Screw
*35169	WCI 3201881
*35168	FASTENER, SWITCH
*35170	WCI 3018802
*35171	WCI 5303319292
*35167	WCI 5303318690
*35166	08002868 Frigidaire 0 Screw Assembly
2	WCI 3016249
6	318345216 Frigidaire Oven Rack
9	WCI 5303310521
10	WCI 5303310520
12B	WCI 5303308447
12A	318394803 Frigidaire Oven Switch
14	SOCKET-LIGHT/LAMP, OVEN
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
18	LATCH-DOOR
41	WCI 3019063
56	TRIM-BODYSIDE, BLACK, (2)
58	WCI 5303311220
58	INSULATION-WRAP
59	WCI 3016301
62B	SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
62A	5304409888 Frigidaire Oven Terminal Block with Hardware
66	5303016247 Frigidaire Broil Element
67	318255101 Frigidaire Oven Bake Element
68	WCI 5303307563
71	WCI 5303304701
76	WCI 5303299251
80	WCI 5303301261
81	WCI 3201632
82	WCI 5303304699
83	LINER – OVEN
86	WCI 3201631
88	WCI 3016241
89	LATCH, MOTOR
89	WCI 3016296
91	WCI 3019069
92	AXLE – HINGE (2)
97	WRAPPER
98A	WCI 3016279
98B	WCI 3016280
99	318284201 Frigidaire PANEL
103	WCI 5303316773
118	WCI 5303308461
121	WCI 5303304700
123	WCI 5303299270
126	Clip,insulator
127	TUBE-OVEN VENT
130	WCI 5303271107
130	WCI 5303271106
