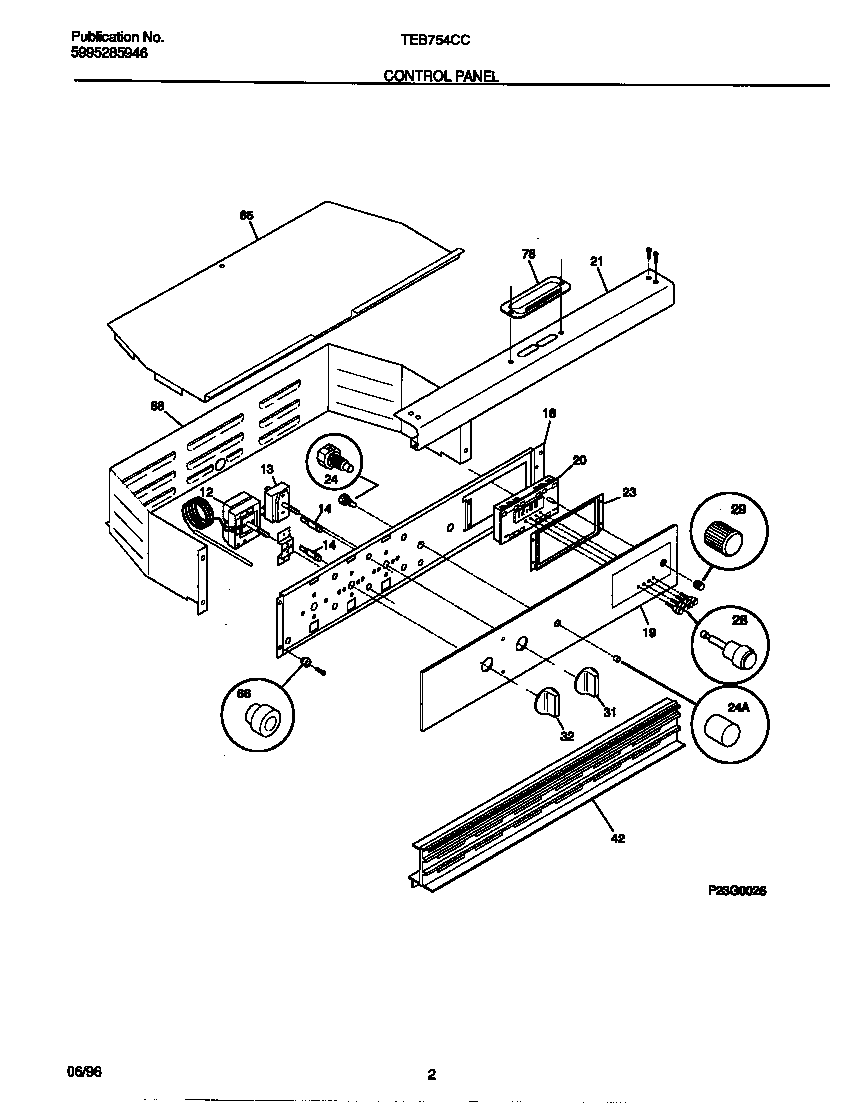

TEB754CCS3 02 – CONTROL PANEL

TEB754CCS3 02 – CONTROL PANEL

Written by

in

TEB754CCS3 02 – CONTROL PANEL

Products

PositionProduct
*410015303300265 Frigidaire Oven Screw
*41003WCI 5303300414
*41002SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
*410005303211311 Frigidaire Refrigerator Screw
*41004WCI 5303311318
12WCI 318058700
13WCI 318057700
14AWCI 318044601
14BWCI 5303316772
16WCI 318023403
19WCI 318000404
20WCI 5303302289
21WCI 318028304
21SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
23WCI 3202088
24WCI 5303316744
24WCI 5303299547
24AWCI 318090000
24BWCI 5303302303
28TIMER KNOB
29KNOB TIMER
31WCI 318016710
32WCI 318016811
42WCI 318027304
65COVER – CONT HOUSING
66WCI 3202093
68WCI 5303302285
78BWCI 316037800
78AWCI 316037700
78WCI 316037603
