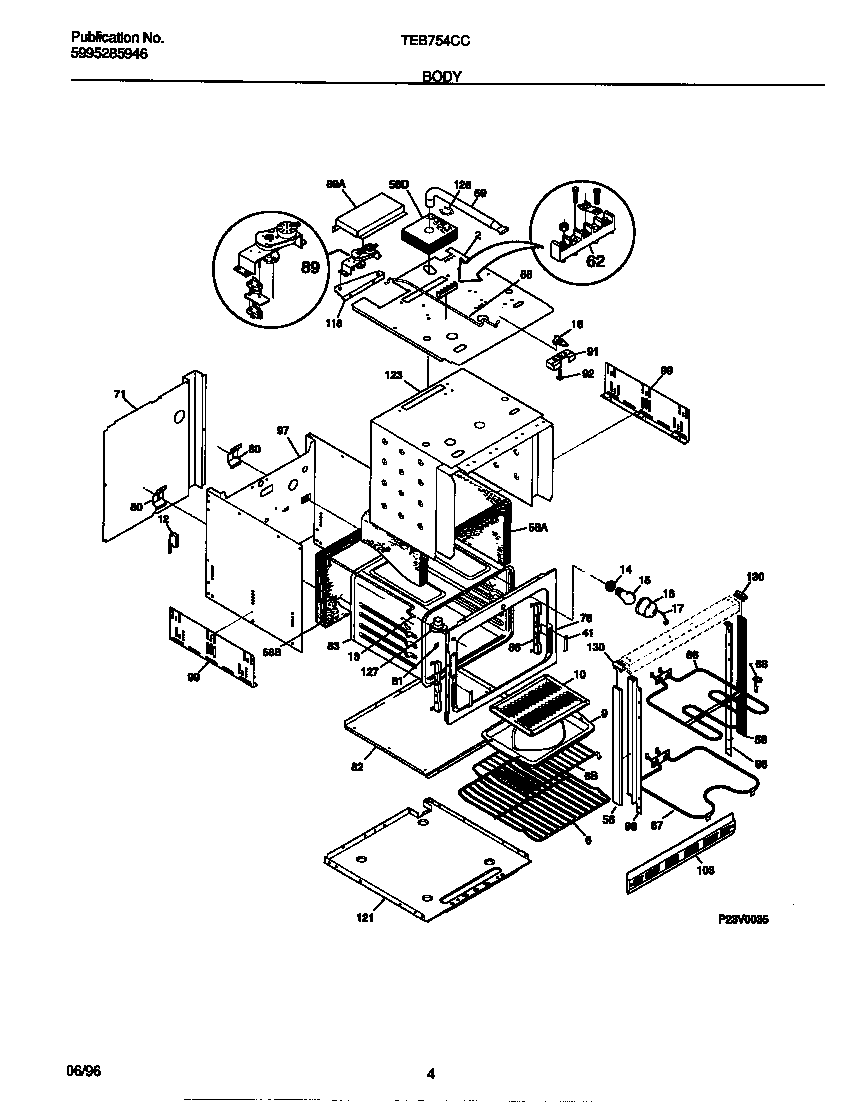

TEB754CCS3 03 – BODY

Products

Position	Product
*41005	WCI 3018802
*41006	WCI 3201881
*41008	08002868 Frigidaire 0 Screw Assembly
*41010	WCI 5303319292
*41007	5304500008 Frigidaire Oven Screw
*41009	5303211311 Frigidaire Refrigerator Screw
2	WCI 3016249
6	318345216 Frigidaire Oven Rack
9	WCI 5303317977
10	WCI 5303317976
12C	WCI 5303308447
12A	318394803 Frigidaire Oven Switch
12B	FASTENER, SWITCH
14	SOCKET-LIGHT/LAMP, OVEN
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WIRE, GLASS RETAINER
18	LATCH-DOOR
41	WCI 3019063
56	WCI 5303320422
56	WCI 5303316902
58	INSULATION-WRAP
58	WCI 5303311220
59	WCI 318072509
62A	5304409888 Frigidaire Oven Terminal Block with Hardware
62B	SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
66	5303016247 Frigidaire Broil Element
67B	WCI 5303320681
67A	318255101 Frigidaire Oven Bake Element
68	WCI 5303307563
71	WCI 5303304701
80	WCI 5303301261
81	WCI 3201632
82	WCI 5303304699
83	WCI 318089506
86	WCI 3201631
88	WCI 3016241
89	WCI 3016296
89	LATCH, MOTOR
91	WCI 3019069
92	AXLE – HINGE (2)
97	WRAPPER
98A	WCI 318029300
98B	WCI 318029301
99	318284201 Frigidaire PANEL
103	WCI 5303316903
118	WCI 5303308461
121	WCI 5303304700
123	WCI 5303299270
126	Clip,insulator
127	318317100 Frigidaire Adapter Assembly
130	WCI 3202631
130	WCI 3202632
