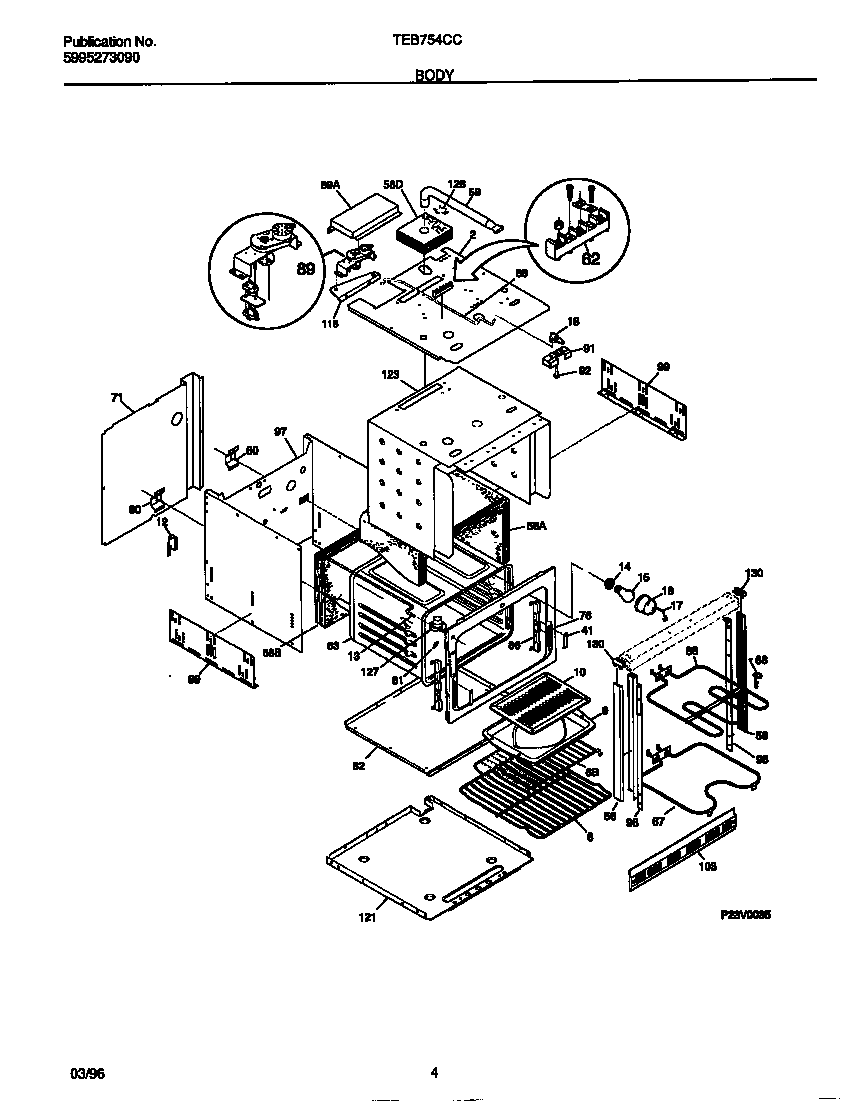

TEB754CCSA 03 – BODY

TEB754CCSA 03 – BODY

Written by

in

TEB754CCSA 03 – BODY

Products

PositionProduct
*351655304500008 Frigidaire Oven Screw
*35171WCI 5303319292
*3516608002868 Frigidaire 0 Screw Assembly
*35168FASTENER, SWITCH
*35167WCI 5303318690
*35170WCI 3018802
*35169WCI 3201881
2WCI 3016249
6318345216 Frigidaire Oven Rack
9WCI 5303310521
10WCI 5303310520
12BWCI 5303308447
12A318394803 Frigidaire Oven Switch
14SOCKET-LIGHT/LAMP, OVEN
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WIRE, GLASS RETAINER
18LATCH-DOOR
41WCI 3019063
56WCI 5303316902
58WCI 5303311220
58INSULATION-WRAP
59WCI 3016301
62A5304409888 Frigidaire Oven Terminal Block with Hardware
62BSCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
665303016247 Frigidaire Broil Element
67318255101 Frigidaire Oven Bake Element
68WCI 5303307563
71WCI 5303304701
76WCI 5303299251
80WCI 5303301261
81WCI 3201632
82WCI 5303304699
83LINER – OVEN
86WCI 3201631
88WCI 3016241
89WCI 3016296
89LATCH, MOTOR
91WCI 3019069
92AXLE – HINGE (2)
97WRAPPER
98BWCI 3016280
98AWCI 3016279
99318284201 Frigidaire PANEL
103WCI 5303316903
118WCI 5303308461
121WCI 5303304700
123WCI 5303299270
126Clip,insulator
127TUBE-OVEN VENT
130WCI 5303316904
130WCI 5303316905
