TEB754CCSA 04 – DOOR

TEB754CCSA 04 – DOOR

Written by

in

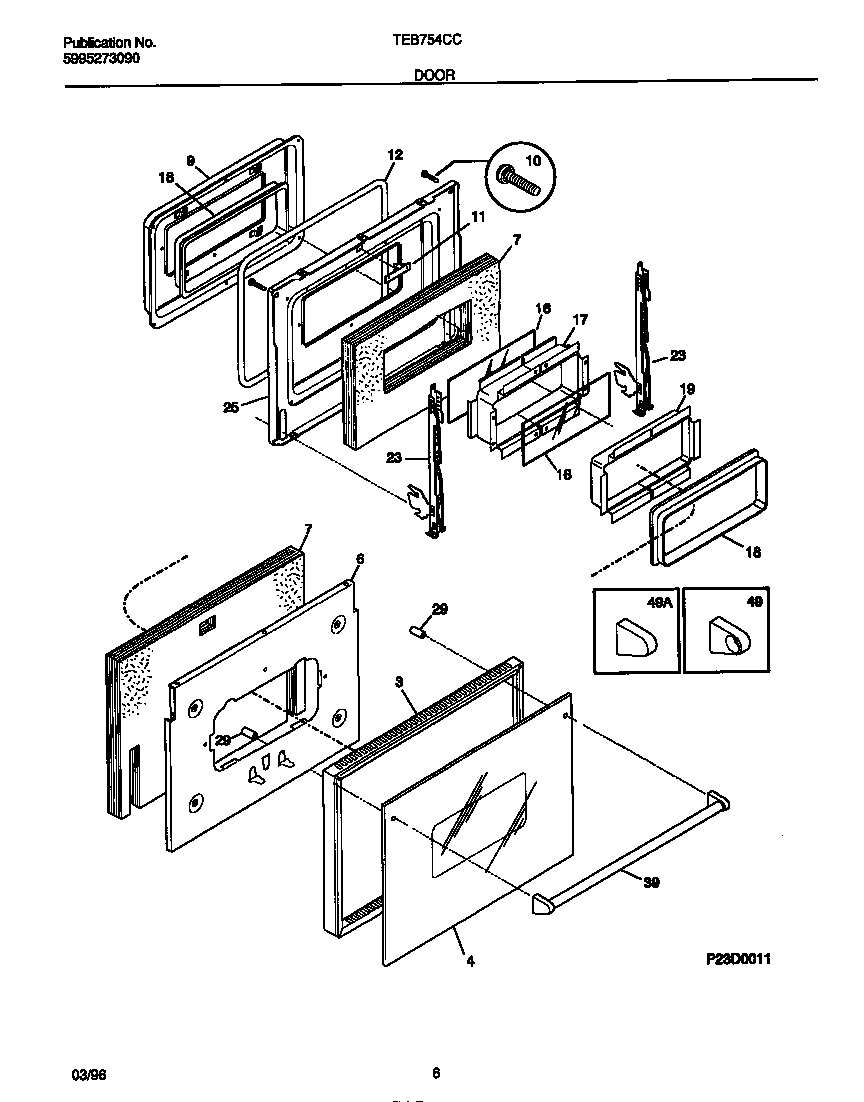

TEB754CCSA 04 – DOOR

Products

PositionProduct
*351735303300265 Frigidaire Oven Screw
*35177Foam seal,(3)
*351755303308456 Frigidaire Oven Screw
*351745303307980 Frigidaire Oven Screw
*35176WCI 5303300414
*35172Plug,button
3WCI 318026600
4WCI 5303302279
6WCI 5303210005
7WCI 5303308470
9WCI 5303300950
10WCI 5303316748
11WCI DK1323556
12SEAL, DOOR
16GLASS – BAFFLE (2)
17SPACER-GLASS
18WCI 3016263
19WCI 5303210006
23WCI 5303018381
25INNER DOOR ASSY
29SPACER-HANDLE MTG, (2)
39WCI 318040204
49WCI 5303307194
49WCI 5303307195
