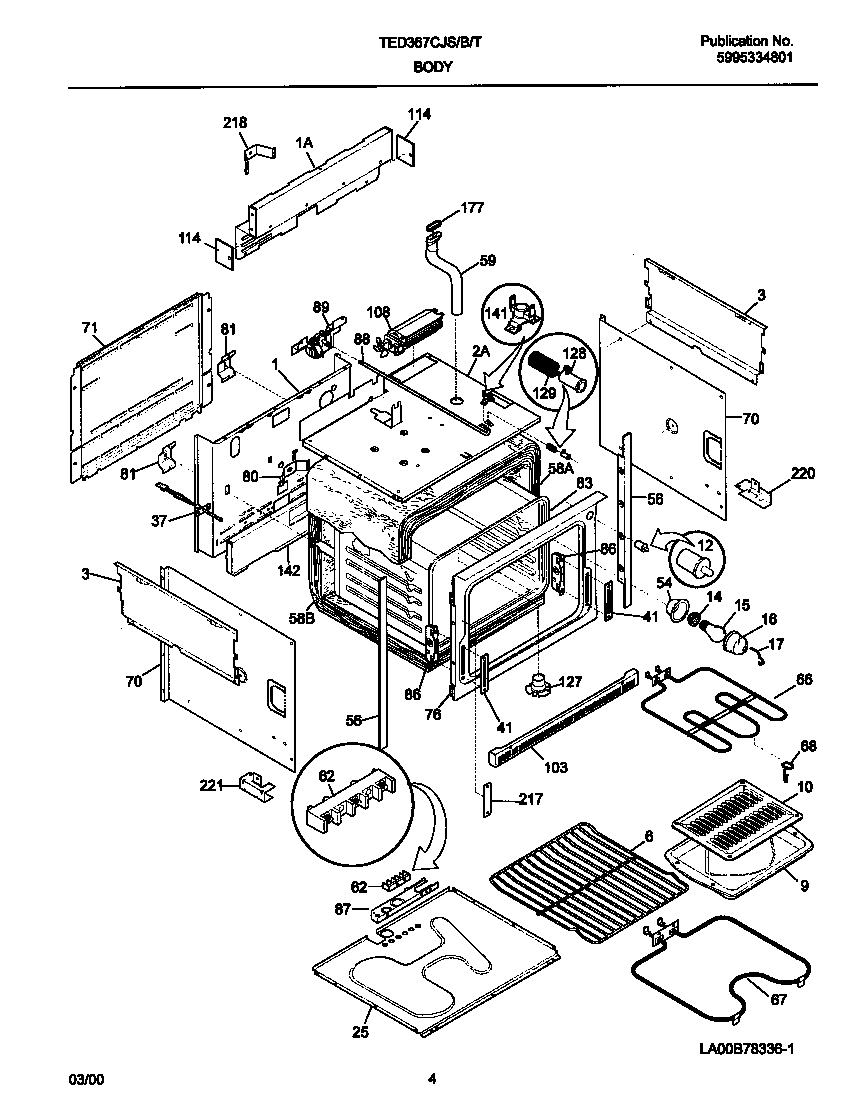

TED367CJB1 03 – BODY

TED367CJB1 03 – BODY

Written by

in

TED367CJB1 03 – BODY

Products

PositionProduct
*174175303300265 Frigidaire Oven Screw
*174165303211311 Frigidaire Refrigerator Screw
*174185303307980 Frigidaire Oven Screw
*174225303323129 Frigidaire Oven Screw
*174113201861 Frigidaire Screw
*17415316205500 Frigidaire Oven Nut
*174215304480396 Frigidaire Screw
*1741308002868 Frigidaire 0 Screw Assembly
*17412CLIP, PLATE CONNECTOR (NOT ILLUSTRATED)
*17423WCI 318078515
*17414SCREW,TRUSS HEAD,8-18 X 0.375
*17424WCI 318120710
*17410WCI 3051528
*17409WCI 3051527
*17420SCREW
1WCI 318066402
1WCI 318070901
2WCI 318108600
3WCI 5303300143
6318025314 Frigidaire Oven Rack
9WCI 318138800
10WCI 318126400
12318394803 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 5303310514
56WCI 318002701
58INSULATION WRAPPER
58WCI 5303310538
59WCI 318072502
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 5303300142
71WCI 5303310515
76WCI 318124100
80318054701 Frigidaire Plate
81WCI 5303301261
83LINER-OVEN,COMP.
86WCI 5303310524
87WCI 318111800
88WCI 5303311160
89318095956 Frigidaire Oven Motor
103WCI 5303300217
108WCI 318073001
114WCI 318175100
127318317100 Frigidaire Adapter Assembly
128WCI 5303311163
1295303311164 Frigidaire Oven Spring
141SWITCH, THERMAL CUTOUT
142WCI 318123901
177WCI 5303324040
217WCI 316042300
218WCI 318054700
220WCI 5304401475
221WCI 5304401476
