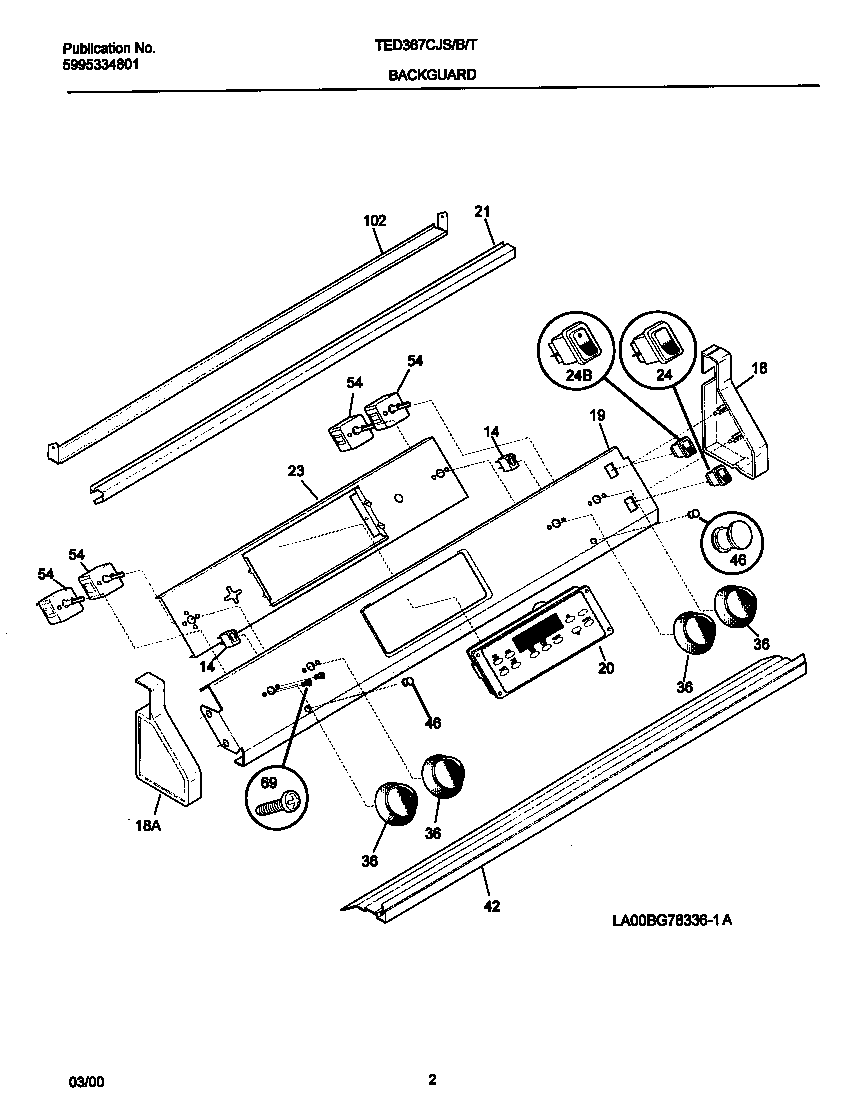

TED367CJS1 02 – CONTROL PANEL

Products

Position	Product
*17405	5303300265 Frigidaire Oven Screw
*17401	CLIP, PLATE CONNECTOR (NOT ILLUSTRATED)
*17406	SCREW
*17408	WCI 5303323145
*17400	3201861 Frigidaire Screw
*17404	5303211311 Frigidaire Refrigerator Screw
*17403	SCREW,TRUSS HEAD,8-18 X 0.375
*17407	5304480396 Frigidaire Screw
*17402	08002868 Frigidaire 0 Screw Assembly
14	LIGHT-LAMP/INDICATOR
18	318254698 Frigidaire End Cap Set
19	WCI 318182600
20	WCI 318012948
21	TRIM-BACKGUARD,TOP
23	WCI 318015020
24	WCI 316086901
24	5304527842 Frigidaire Rocker Switch
36	WCI 318017110
42	WCI 318106924
46	318044511 Frigidaire Oven Lens
54	WCI 318120500
69	5303288565 Frigidaire Screw
102	WCI 318055601
