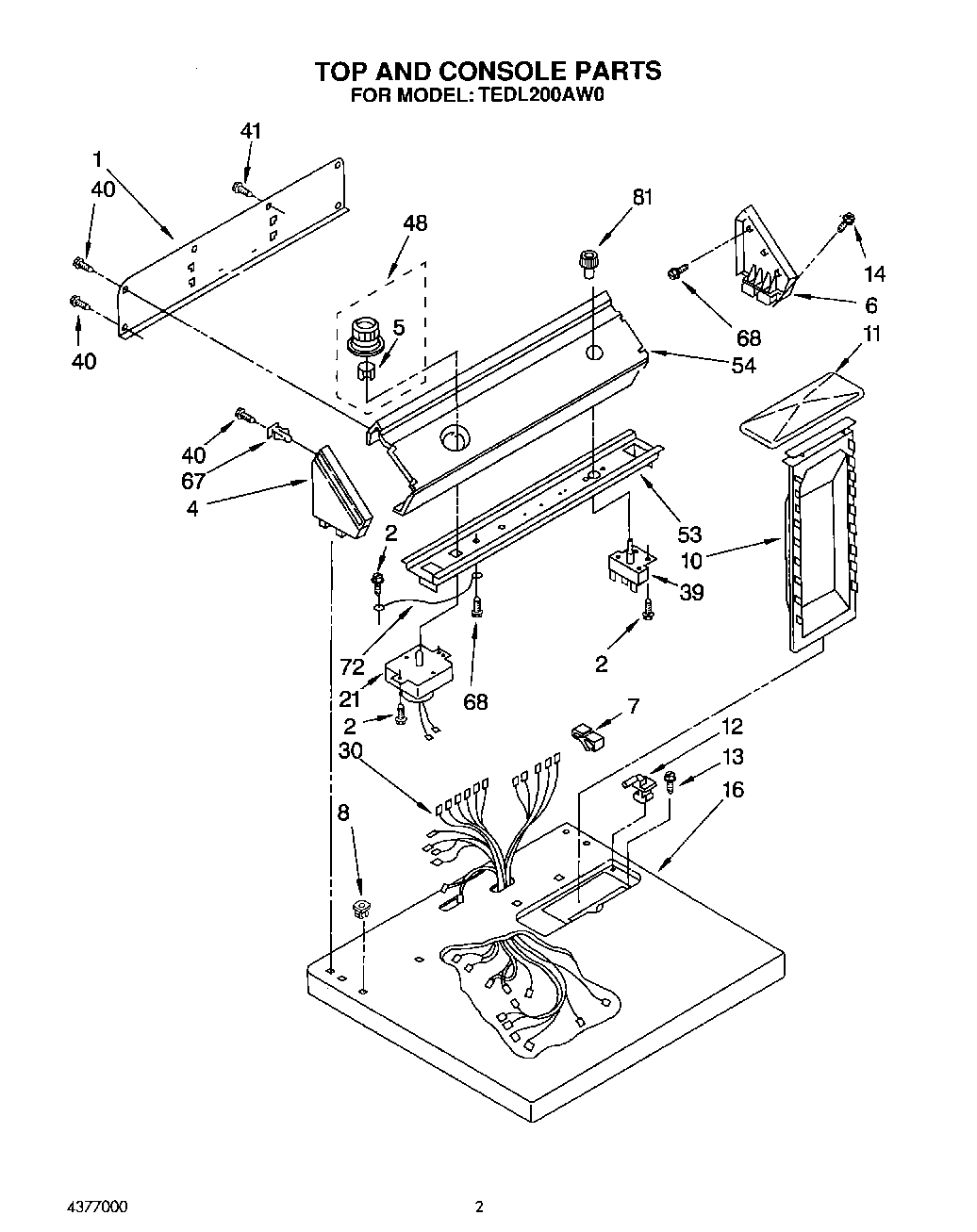

TEDL200AN0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Washer (Belt Drive)
	Almond (Uncut)
	Leveler (Thinner)
	Use & Care Guide
	WP72107 Whirlpool Touchup
	List, Service Parts
	799344 Whirlpool Refrigerator Paint
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Dryer
1	Panel, Rear Console
2	SCREW
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
7	Clip, Retainer
8	WP357213 Whirlpool Hinge Stopper
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
16	Top (White)
16	Top (Almond)
21	WP3396215 Whirlpool Timer
30	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
40	WP489069 Whirlpool Compactor Screw
41	WP693995 Whirlpool Screw
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
68	WPW10139210 Whirlpool Screw
72	Wire, Ground
81	Knob, Push-To-Start
