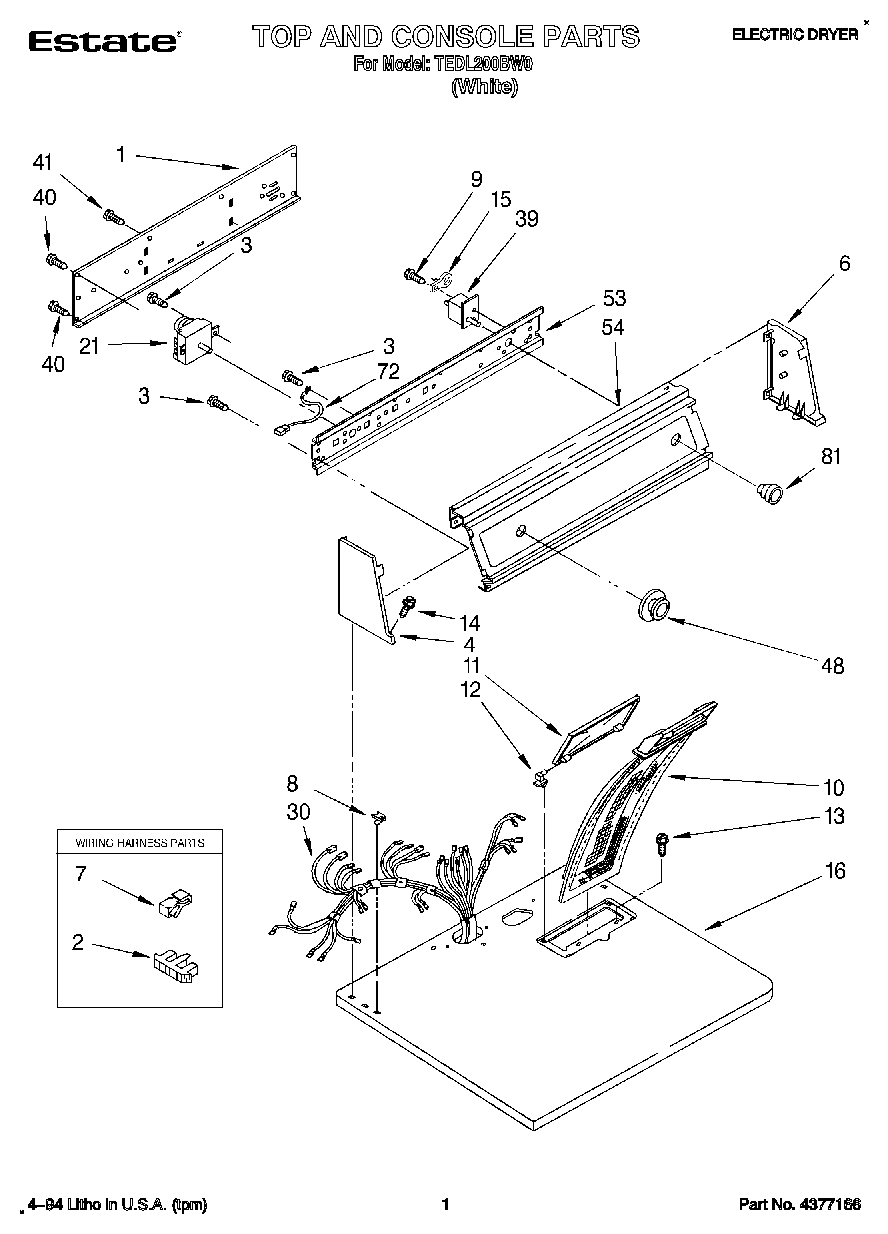

TEDL200BW0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Instructions, Installation
	Guide, Use & Care
	Almond (Uncut)
	Label, Wiring Diagram
	Washer (Belt Drive)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	Connector, Timer
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
6	Cap, End (R.H.)
7	Clip, Retainer
8	WP357213 Whirlpool Hinge Stopper
9	WP488729 Whirlpool Refrigerator Door Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	279872 Whirlpool Resistor
16	Top (White)
21	Timer, 60 Hz.
30	Harness, Wiring
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
40	WP489069 Whirlpool Compactor Screw
41	WP693995 Whirlpool Screw
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
81	Knob, Push-To-Start
