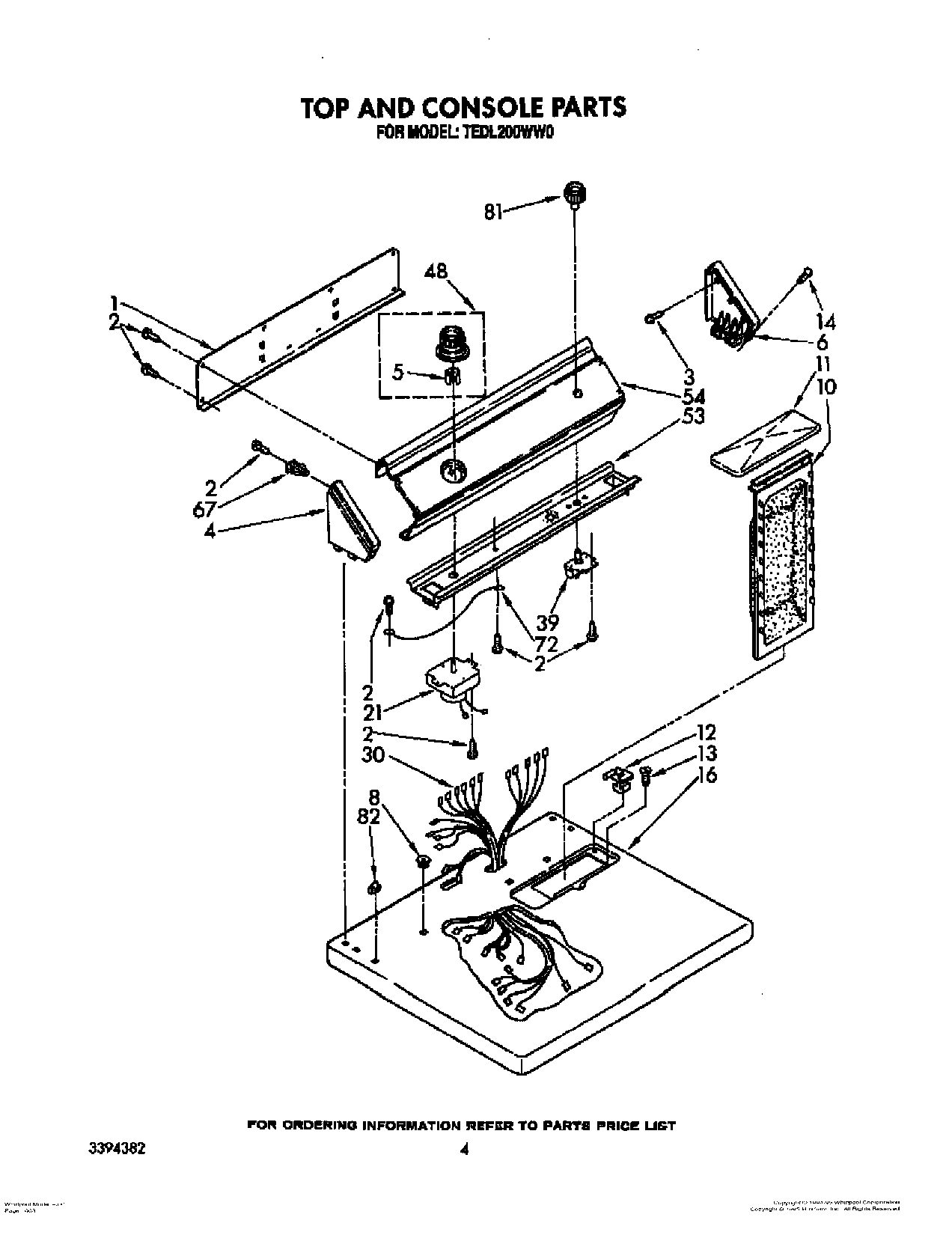

TEDL200WW0 03 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	List, Service Parts
	Instructions, Installation
	Guide, Dryer
	Washer (Belt Drive)
	WPL LIT677967
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	Guide, Use & Care
	Dryer
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	350938 Whirlpool Spray Gun
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WPL 63796
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
21	Timer Assembly, 60 Hz.
30	Harness
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
39	Switch, Push-To-Start
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push-To-Start
82	Nut, Push-In (2)
