TEDL400AW0 02 – SECTION

TEDL400AW0 02 – SECTION

Written by

in

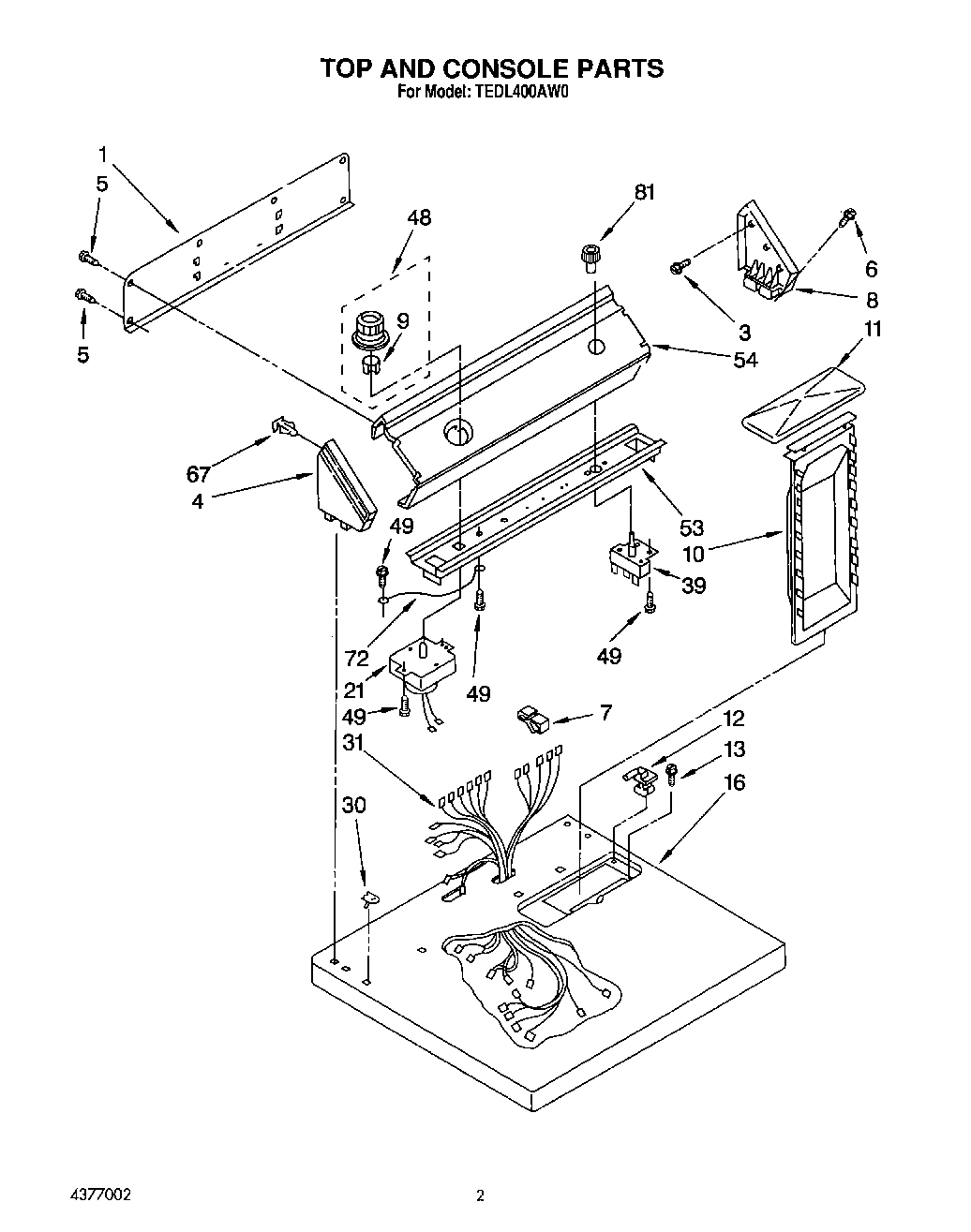

TEDL400AW0 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Washer (Belt Drive)
Instructions, Installation
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
Use & Care Guide
799344 Whirlpool Refrigerator Paint
List, Service Parts
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
3WP489069 Whirlpool Compactor Screw
4Cap, End (L.H.)
5WP693995 Whirlpool Screw
6WP388326 Whirlpool Screw
7Clip, Retainer
8Cap, End (R.H.)
9WP688805 Whirlpool Spring Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
16Top (Almond)
21WP3396215 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48Timer Knob Assembly
49WPW10139210 Whirlpool Screw
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
81Knob, Push-To-Start
