TEDL400WN1 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
WPL LIT677967
Washer (Belt Drive)
Instructions, Installation
List, Service Parts
Use & Care Guide
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
Dryer
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly

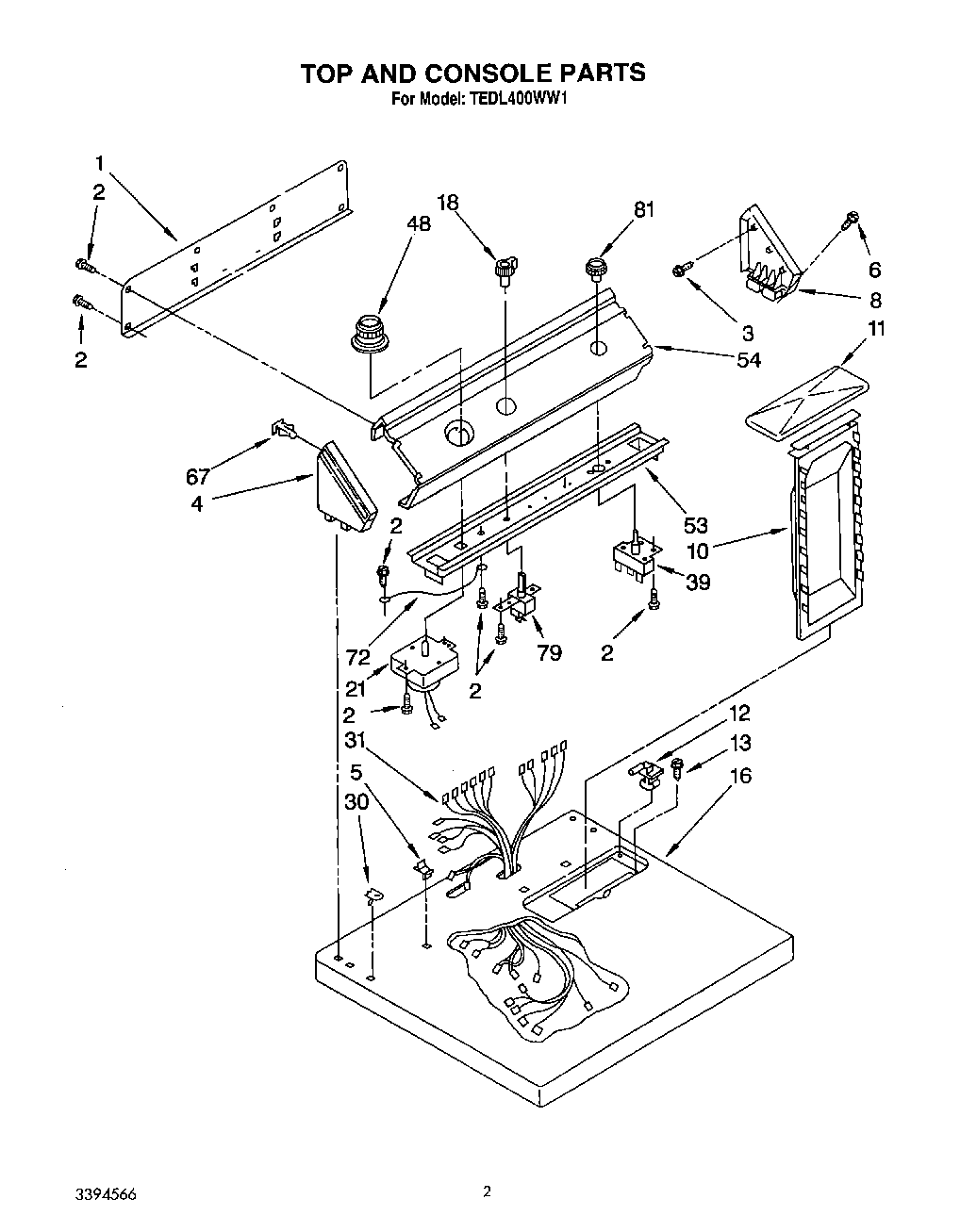

1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6WPL 64211
8WPL 63796
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
16Top (Almond)
18Knob, Temperature Selector
21Timer Assembly, 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Temperature Selector
81Knob, Push To Start
