TEDL600WW0 02 – SECTION

Products

Position	Product
	Instructions, Installation
	72113 Whirlpool Touch-Up Paint
	Enamal, Toast (1 Qt. Uncut)
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	WPL LIT3391362
	Platinum (Uncut)
	WPL 72112
	WPL LIT3393009
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint

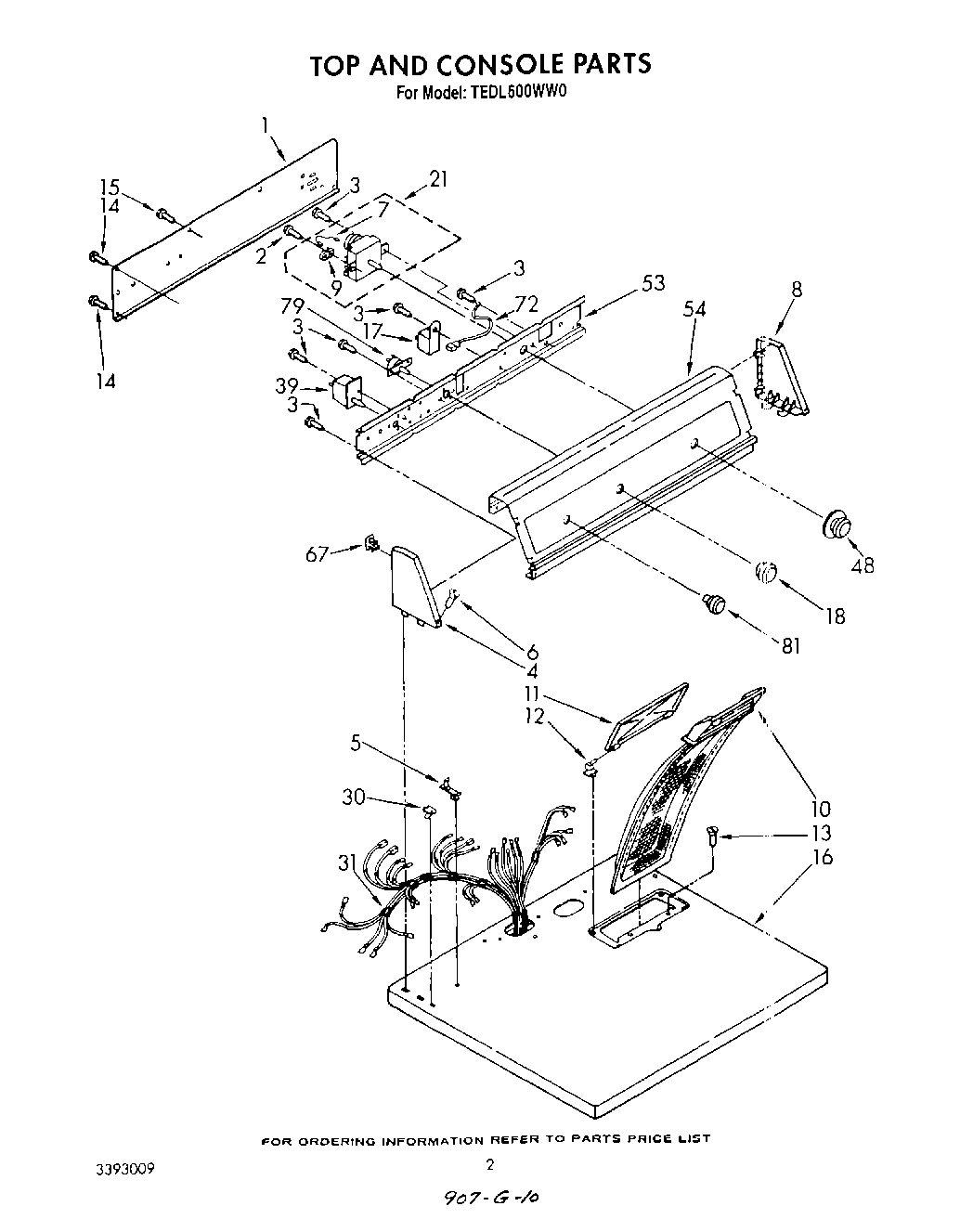

1	Panel, Rear
2	SCREW
3	WP3390631 Whirlpool Screw
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WPL 64211
7	Wire, Jumper
8	Cap, End (R.H.)
9	279872 Whirlpool Resistor
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	Control Knob, Temperature
21	Timer & Resistor (60 Hz.)
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push-To-Start
