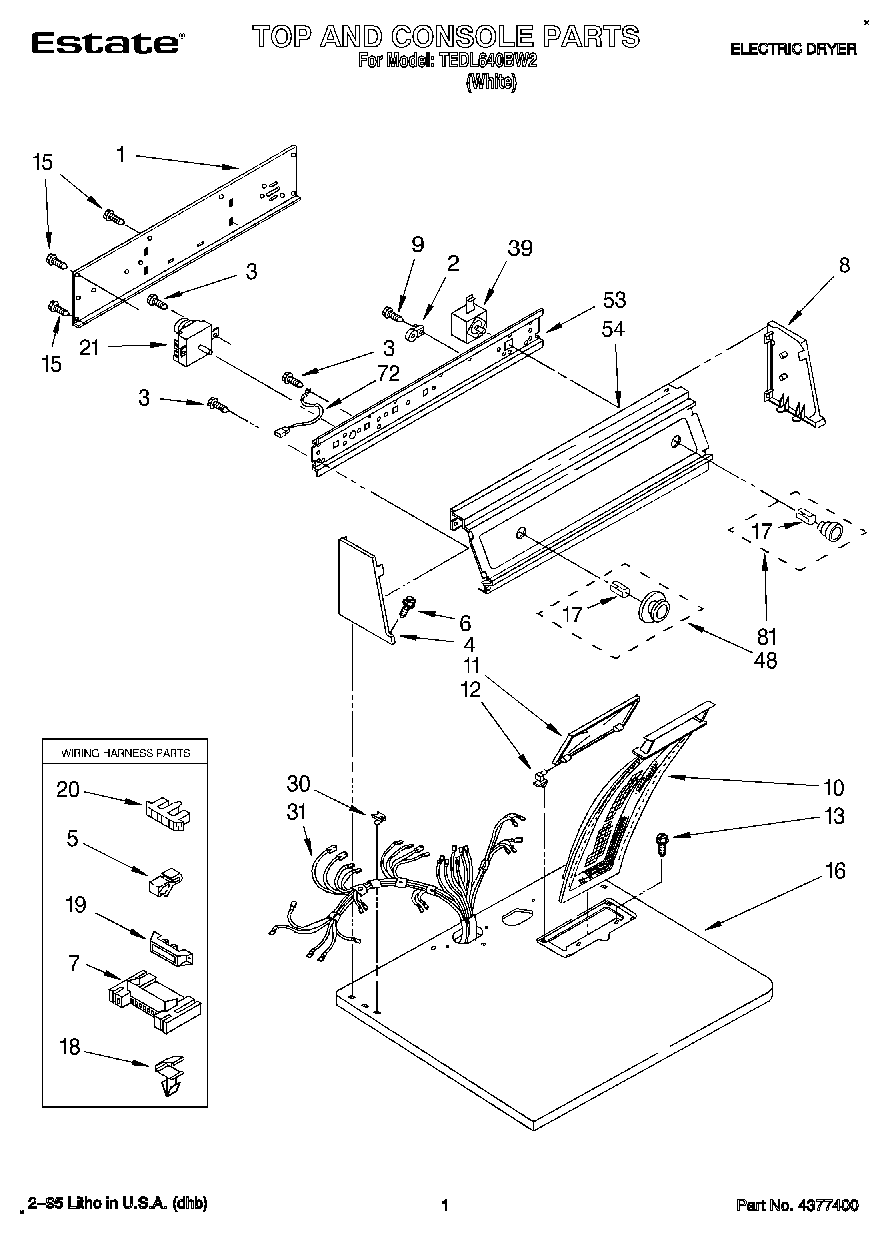

TEDL640BW2 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Dryer
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Guide, Use & Care
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	279872 Whirlpool Resistor
3	WPW10139210 Whirlpool Screw
4	Cap, End (L.H.)
5	Clip, Retainer
6	WP388326 Whirlpool Screw
7	3395683 Whirlpool Connector
8	Cap, End (R.H.)
9	WP488729 Whirlpool Refrigerator Door Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP693995 Whirlpool Screw
16	Top (White)
17	WP688805 Whirlpool Spring Clip
18	WP3394427 Whirlpool Clip
19	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Connector, Timer
21	Timer, 60 Hz.
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3395382 Whirlpool Push To Start Switch
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
81	Button, Push-To-Start
