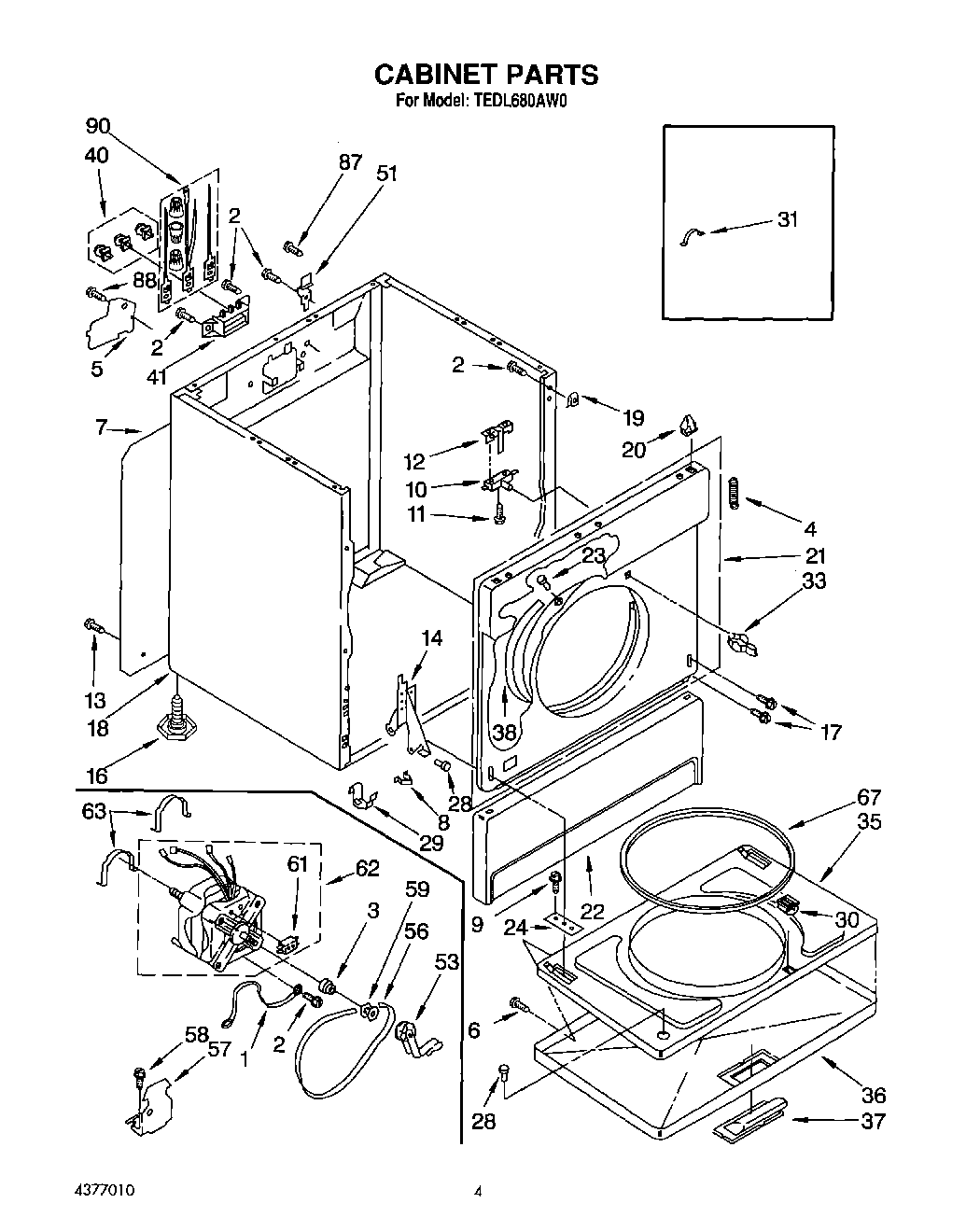

TEDL680AN0 03 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
3	WP3393657 Whirlpool Belt Retainer
4	Spring, Door (2)
5	W11736322 Whirlpool Cover Assembly
6	WP694091 Whirlpool Screw
7	Panel, Rear
8	WP3388229 Whirlpool Dryer Spring Clip
9	WP308685 Whirlpool Microwave Screw
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP489069 Whirlpool Compactor Screw
14	Hinge, R.H.
14	Hinge, L.H.
16	49621 Whirlpool Leveling Feet
17	Screw, 10-32 x 1/2
18	Cabinet (White)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
21	Front Panel Assembly (Almond)
22	Panel, Toe (Almond)
22	Panel, Toe (White)
23	279220 Whirlpool Clip
24	W11252547 Whirlpool Clip Assembly
28	238614 Whirlpool Bumper Hinge
29	WP297092 Whirlpool Clip
30	279570 Whirlpool Dryer Door Latch Kit
31	8528351 Whirlpool Clip
35	Door, Rear
36	Door, Front (White)
36	Door, Front (Almond)
37	WP348721 Whirlpool Handle
37	Handle, Door (Almond)
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	WP3390733 Whirlpool Door Seal Assembly
87	W10850756 Whirlpool Screw
88	WP693995 Whirlpool Screw
90	279318 Whirlpool Terminal
