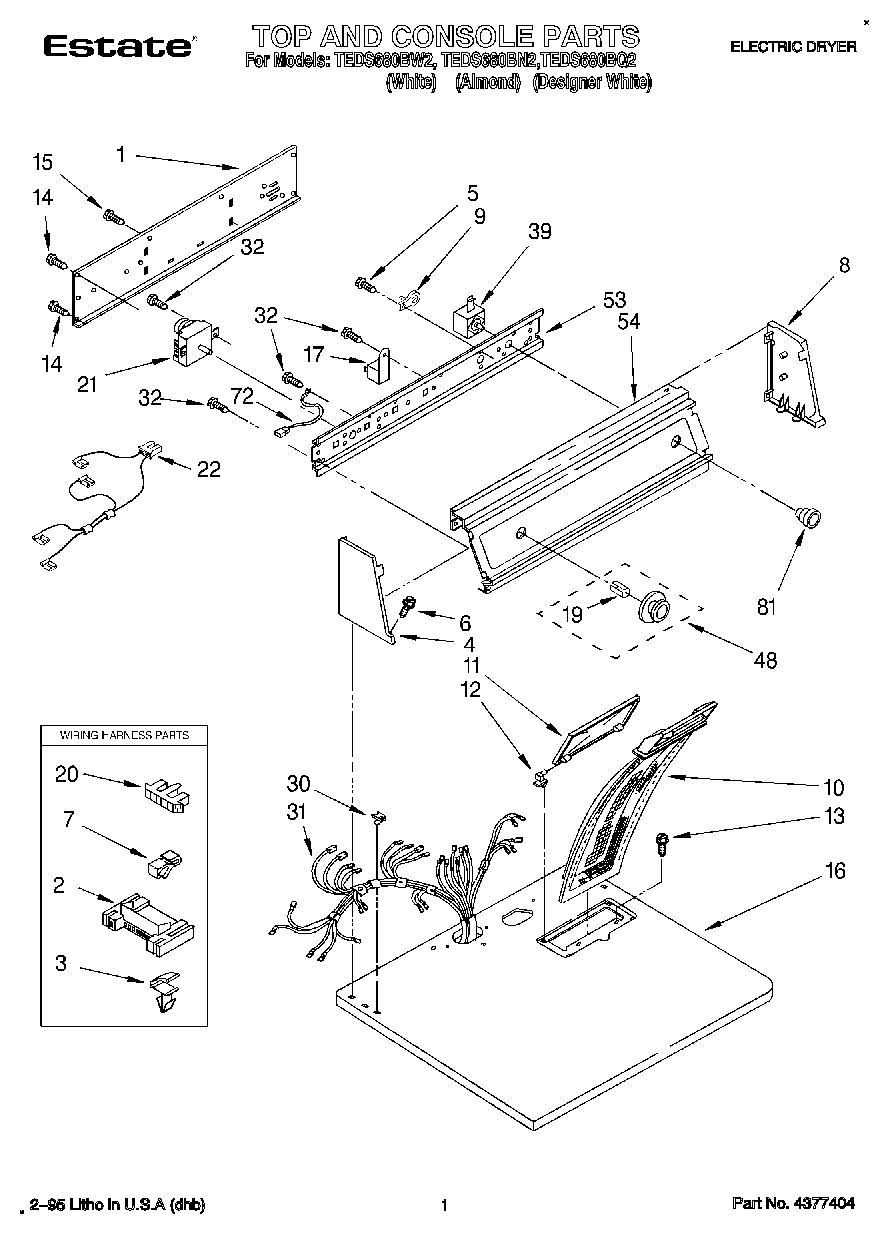

TEDS680BN2 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Guide, Use & Care
	350938 Whirlpool Spray Gun
	Instructions, Installation
1	Panel, Rear Console
2	3395683 Whirlpool Connector
3	WP3394427 Whirlpool Clip
4	FOR MODEL REL4632BQ3
4	Cap, End (L.H.)
5	WP488729 Whirlpool Refrigerator Door Screw
6	WP388326 Whirlpool Screw
7	Clip, Retainer
8	Cap, End (R.H.)
8	FOR MODEL REL4632BQ3
9	279872 Whirlpool Resistor
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
19	WP688805 Whirlpool Spring Clip
20	Connector, Timer
21	WP3976569 Whirlpool Timer
22	Wire, Jumper
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WPW10139210 Whirlpool Screw
39	Switch, Push-To-Start
48	Timer Knob Assembly
48	FOR MODEL TEDS680BQ1
53	Bracket, Control
54	Panel, Control
54	FOR MODEL TEDS680BQ1
72	Wire, Ground
81	Knob, Control (For Almond Model)
81	Knob, Control (For Designer White Model)
