TEDS680EQ0 02 – SECTION

TEDS680EQ0 02 – SECTION

Written by

in

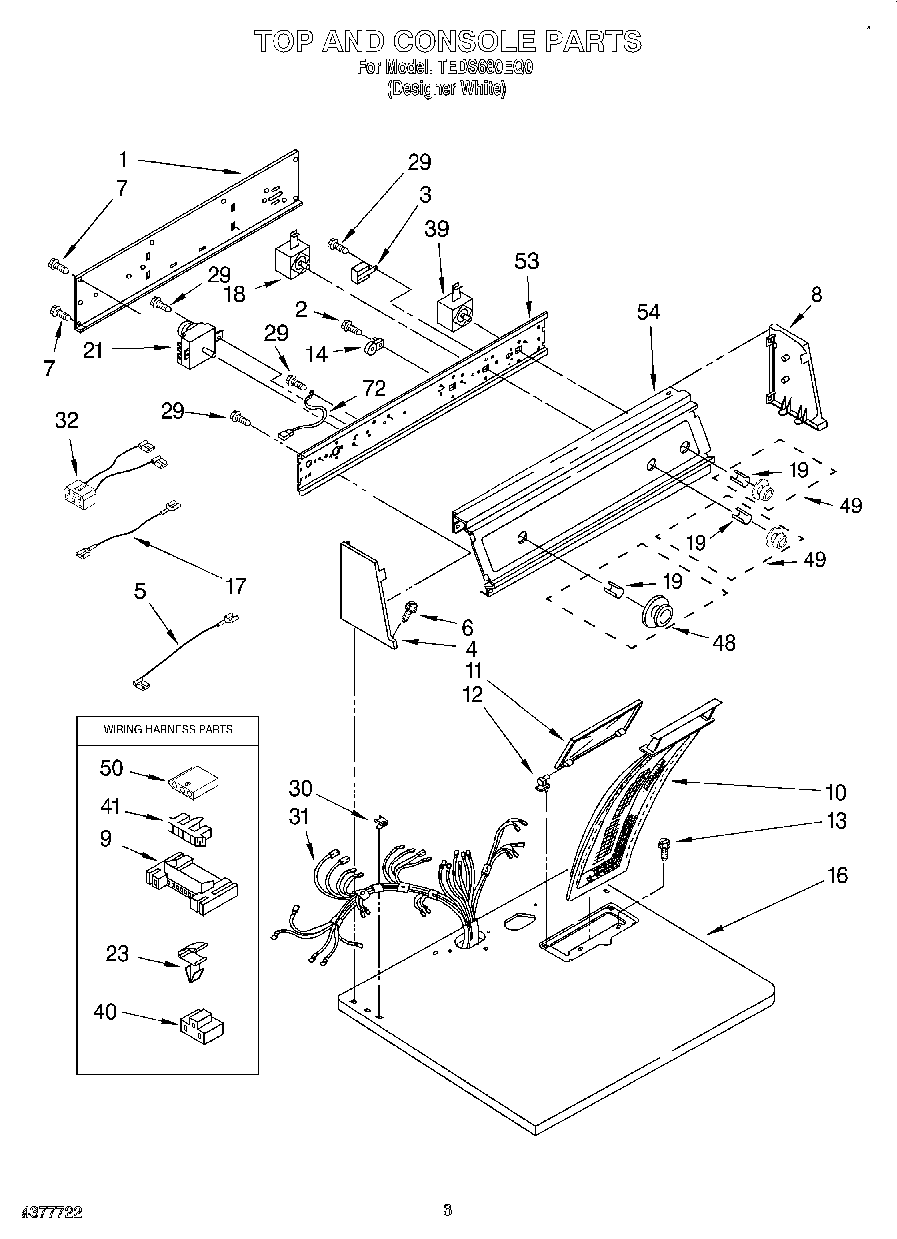

TEDS680EQ0 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3397618
Label, Wiring Diagram
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Guide, Use & Care
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP488729 Whirlpool Refrigerator Door Screw
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (White)
5Wire, Jumper (Tan)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8Cap, End (R.H.) (White)
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14279872 Whirlpool Resistor
16Top (White)
17Wire, Jumper (Black)
183399638 Whirlpool Switch
19WP688805 Whirlpool Spring Clip
21WP3976574 Whirlpool Timer
23WP3394427 Whirlpool Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328283286 Whirlpool Wire Harness
39Relay, Push To Start
403401144 Whirlpool Connector
41Connector, Timer
48For Model REX4635EQ1
49Knob, Control (White)
50Connector (Door Switch)
53Bracket, Control
54Panel, Control (White)
72Wire, Ground
