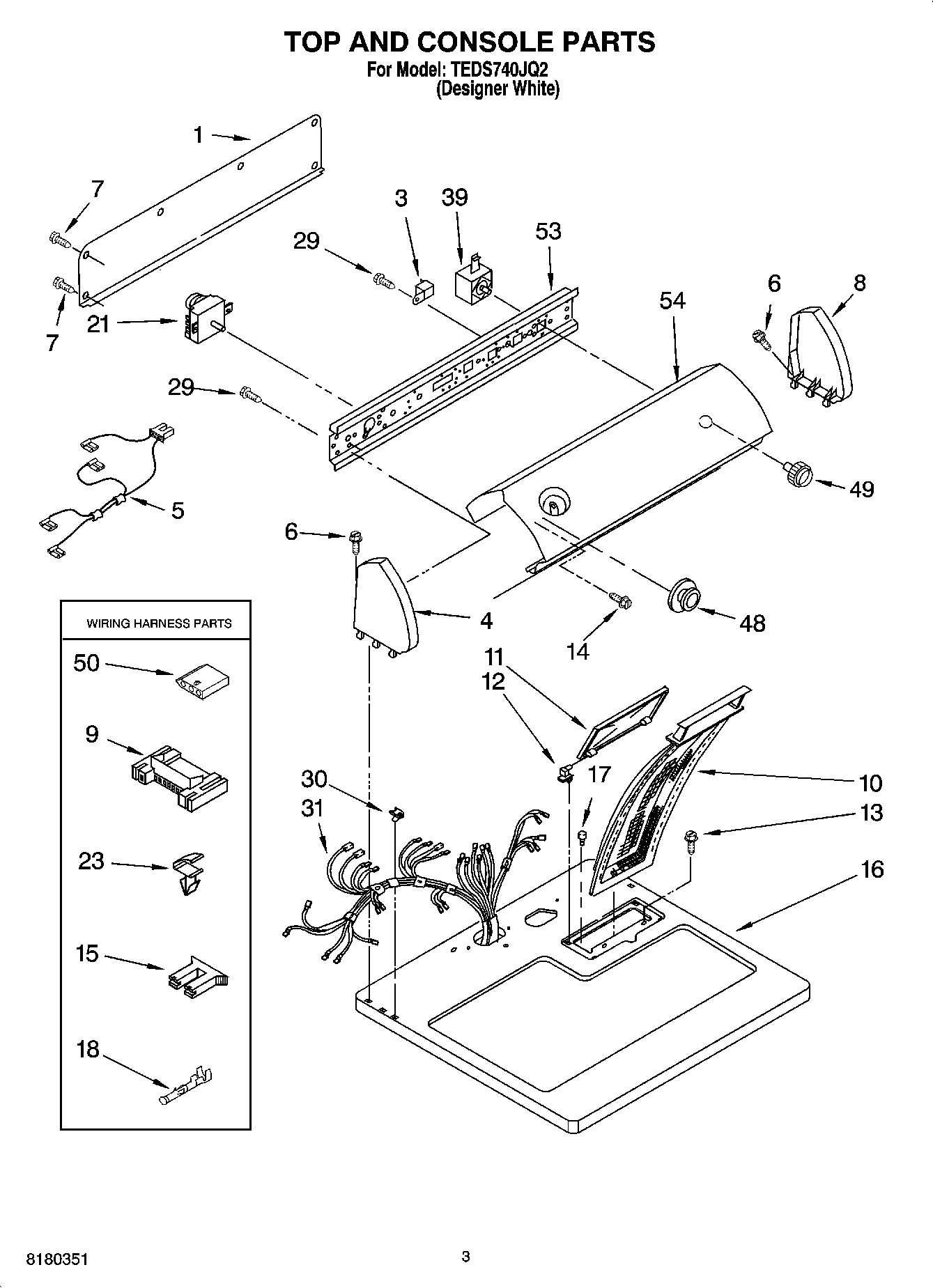

TEDS740JQ2 02 – TOP AND CONSOLE PARTS

TEDS740JQ2 02 – TOP AND CONSOLE PARTS

Written by

in

TEDS740JQ2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
3WP694419 Whirlpool Buzzer Adjuster
5Wire, Jumper
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153354925 Whirlpool Connector
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
21WP8299778 Whirlpool Timer
23WP3394427 Whirlpool Clip
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
39Switch, Push-To-Start
48WP3957746 Whirlpool Knob Assembly
49WP3957796 Whirlpool Knob
503936144 Whirlpool Connector
53Bracket, Control
543404351 Whirlpool Dryer Rack
54Panel, Control
54W11224254 Whirlpool Test Kit
544392065 Whirlpool Dryer Maintenance Kit
54350930 Whirlpool White Spray Paint
54799344 Whirlpool Refrigerator Paint
5472017 Whirlpool Appliance Touch-Up Paint White
54350938 Whirlpool Spray Gun
54ACCESSORY PARTS
