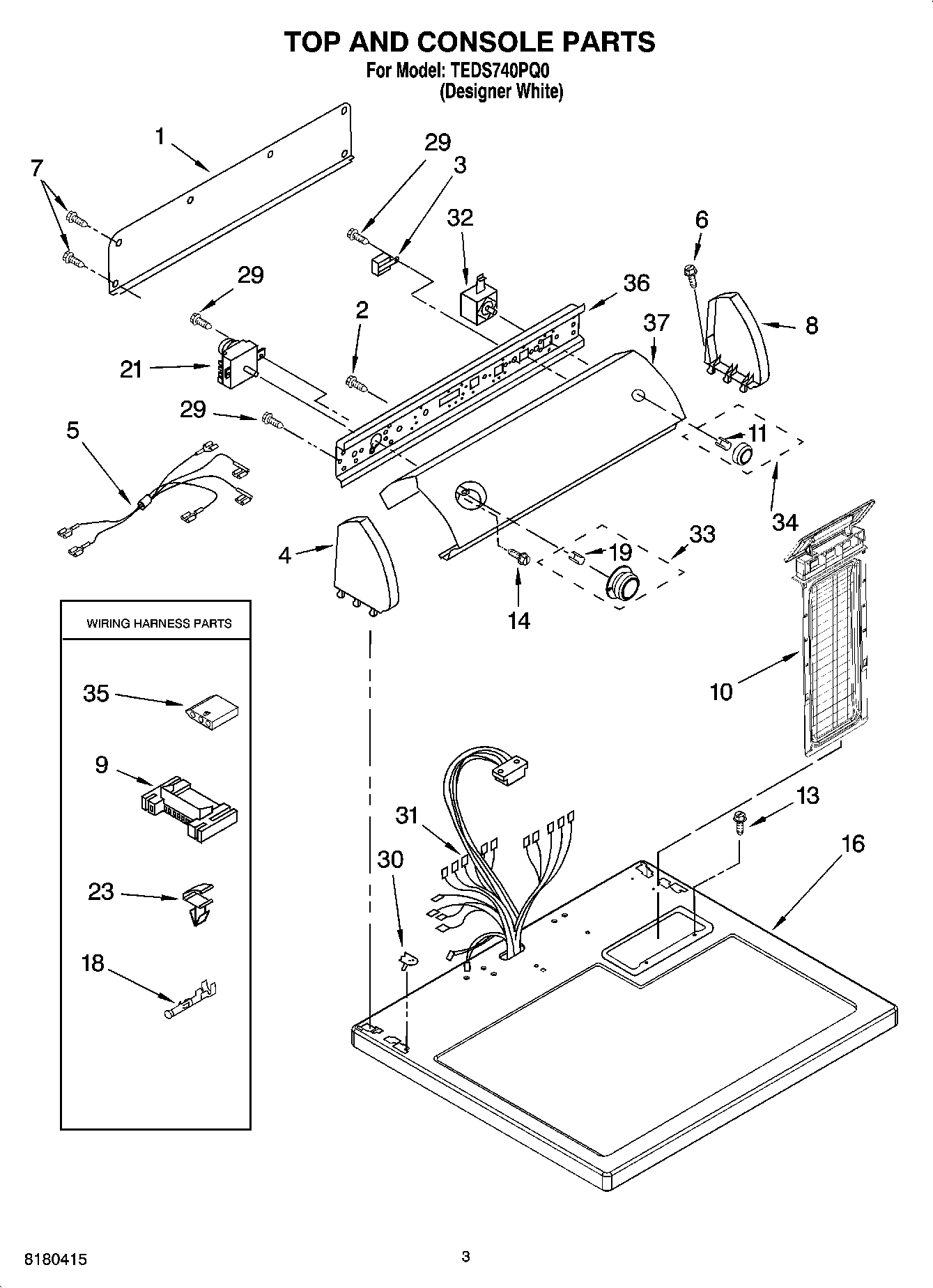

TEDS740PQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	WP90767 Whirlpool Screw
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (PTS to Buzzer)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	279960 Whirlpool Endcap Assembly
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top
18	WP94614 Whirlpool Terminal
19	WP688805 Whirlpool Spring Clip
21	WP8299778 Whirlpool Timer
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	WPW10450292 Whirlpool Wire Harness
32	WP3404233 Whirlpool Dryer Starter Switch
33	Timer Knob Assembly
34	WP8557460 Whirlpool Knob
35	3936144 Whirlpool Connector
36	Bracket, Control
37	Panel, Control
37	350930 Whirlpool White Spray Paint
37	3404351 Whirlpool Dryer Rack
37	W11224254 Whirlpool Test Kit
37	4392065 Whirlpool Dryer Maintenance Kit
37	799344 Whirlpool Refrigerator Paint
37	72017 Whirlpool Appliance Touch-Up Paint White
37	350938 Whirlpool Spray Gun
37	ACCESSORY PARTS
