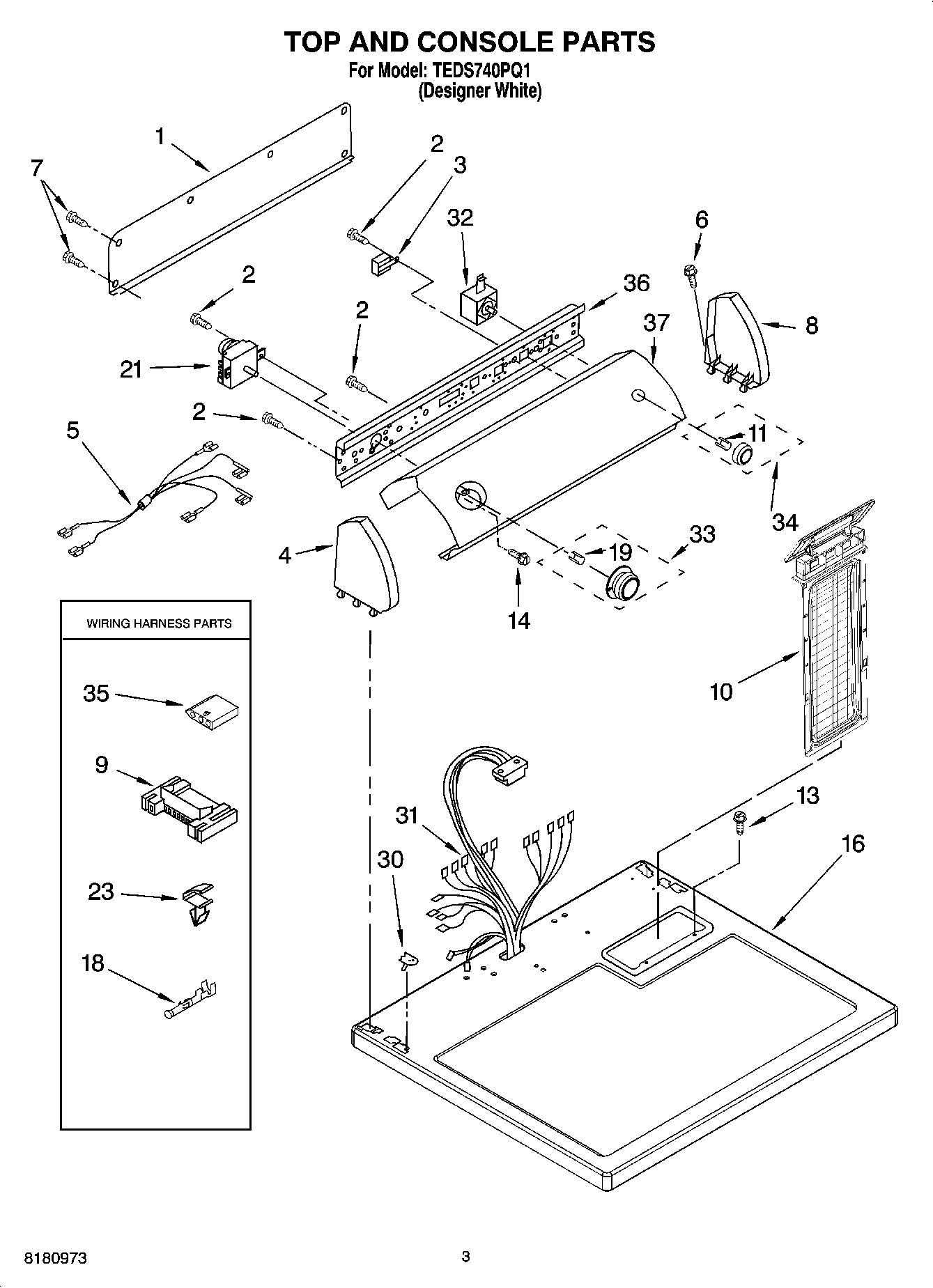

TEDS740PQ1 02 – TOP AND CONSOLE PARTS

TEDS740PQ1 02 – TOP AND CONSOLE PARTS

Written by

in

TEDS740PQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2WP90767 Whirlpool Screw
3WP694419 Whirlpool Buzzer Adjuster
5Wire, Jumper (PTS to Buzzer)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
16Top
18WP94614 Whirlpool Terminal
19WP688805 Whirlpool Spring Clip
21WP8299778 Whirlpool Timer
23WP3394427 Whirlpool Clip
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
32WP8543274 Whirlpool PTS Switch
33Timer Knob Assembly
34WP8557460 Whirlpool Knob
353936144 Whirlpool Connector
36Bracket, Control
37Panel, Control
