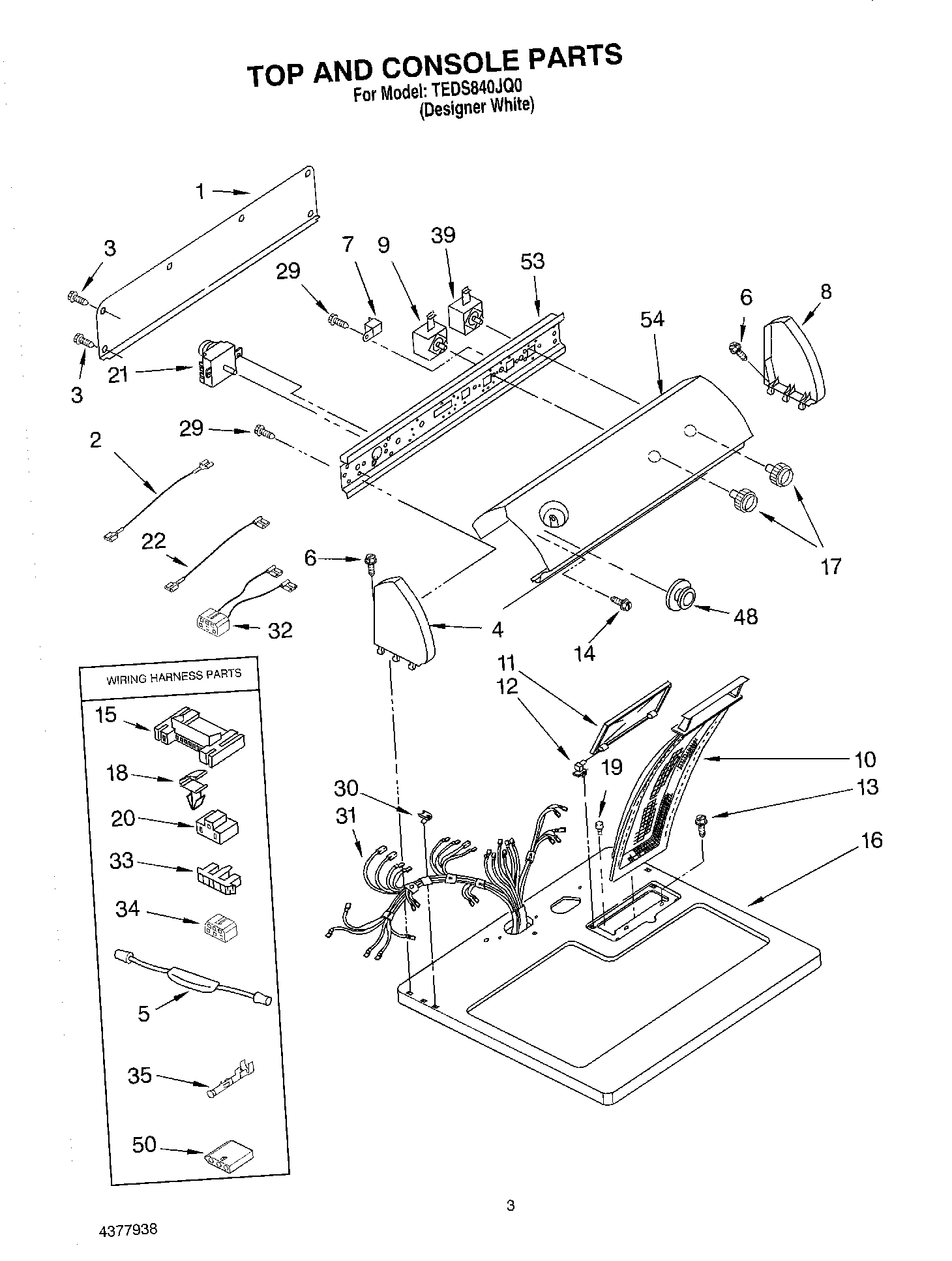

TEDS840JQ0 02 – SECTION

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
5	279872 Whirlpool Resistor
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	279960 Whirlpool Endcap Assembly
9	WP3399639 Whirlpool Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WP3957796 Whirlpool Knob
18	WP3394427 Whirlpool Clip
19	Bumper, Lint Lid
20	3401144 Whirlpool Connector
21	WP8299765 Whirlpool Timer
22	Wire, Jumper (Tan)
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	Relay, Push To Start
48	WP3957746 Whirlpool Knob Assembly
50	3936144 Whirlpool Connector
53	Bracket, Control
54	3406839 Whirlpool Drying Rack
54	350930 Whirlpool White Spray Paint
54	799344 Whirlpool Refrigerator Paint
54	72017 Whirlpool Appliance Touch-Up Paint White
54	350938 Whirlpool Spray Gun
54	Panel, Control
