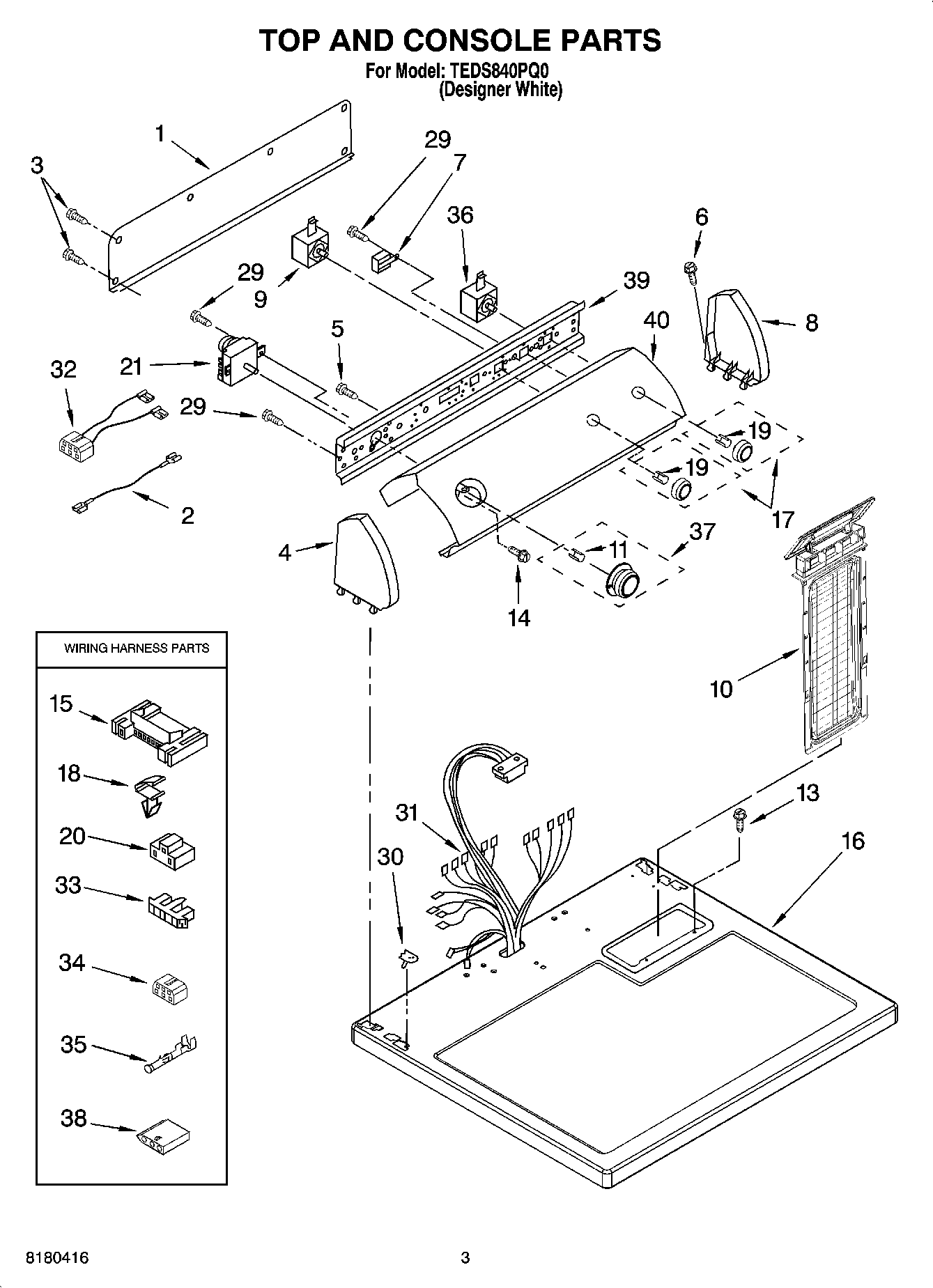

TEDS840PQ0 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
5	WP90767 Whirlpool Screw
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	279960 Whirlpool Endcap Assembly
9	WP3399639 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP688805 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WP8557460 Whirlpool Knob
18	WP3394427 Whirlpool Clip
19	WP8536939 Whirlpool Spring Clip
20	3401144 Whirlpool Connector
21	WP3979617 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8539893 Whirlpool Wire Harness
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
36	WP3398095 Whirlpool Dryer Start Relay
37	Timer Knob Assembly
38	3936144 Whirlpool Connector
39	Bracket, Control
40	Panel, Control
40	350930 Whirlpool White Spray Paint
40	W11224254 Whirlpool Test Kit
40	4392065 Whirlpool Dryer Maintenance Kit
40	3406839 Whirlpool Drying Rack
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350938 Whirlpool Spray Gun
40	ACCESSORY PARTS

No products found
