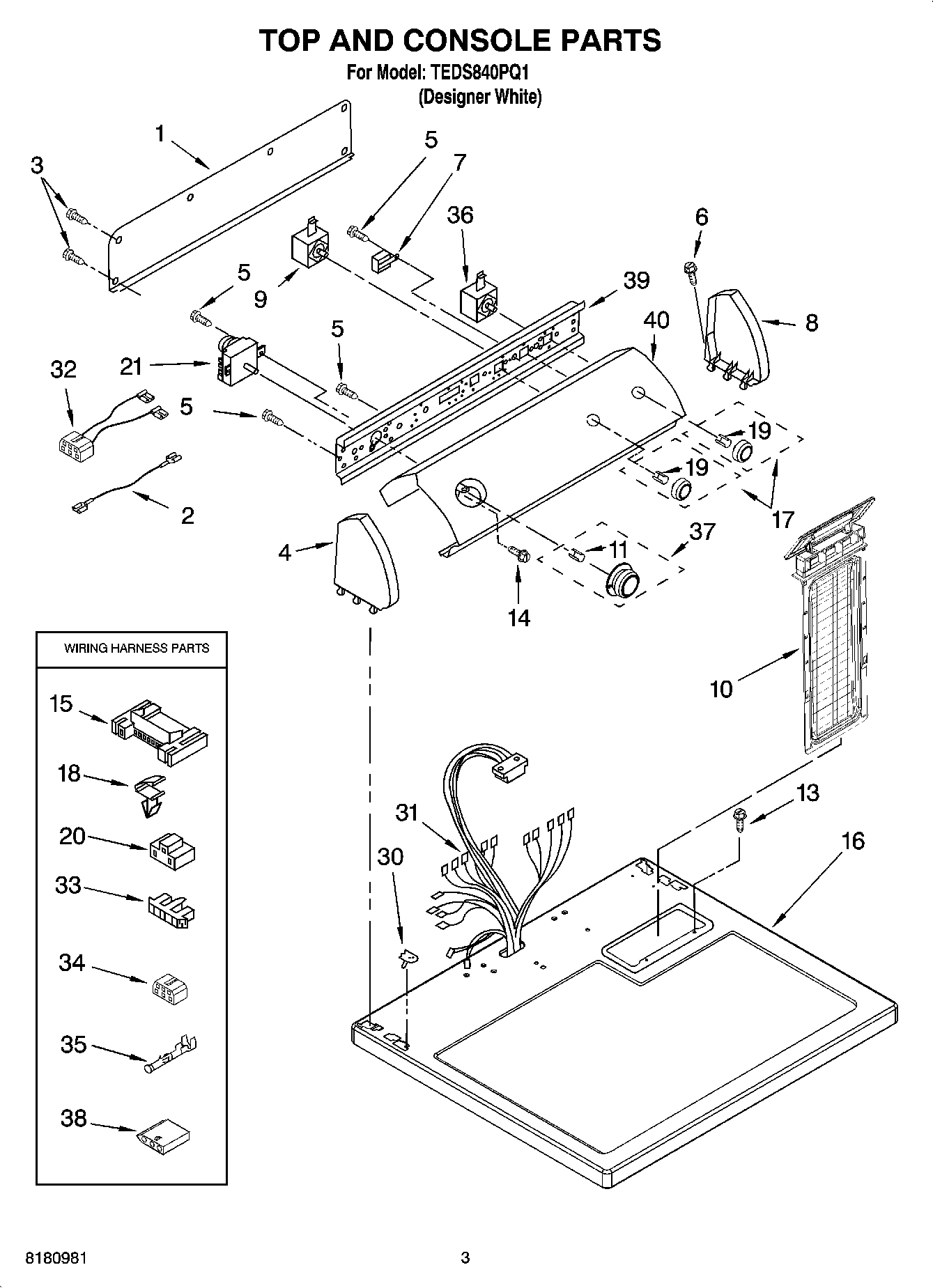

TEDS840PQ1 02 – TOP AND CONSOLE PARTS

TEDS840PQ1 02 – TOP AND CONSOLE PARTS

Written by

in

TEDS840PQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
5WP90767 Whirlpool Screw
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8279960 Whirlpool Endcap Assembly
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP8557460 Whirlpool Knob
18WP3394427 Whirlpool Clip
19WP8536939 Whirlpool Spring Clip
203401144 Whirlpool Connector
21WP3979617 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
36WP3398095 Whirlpool Dryer Start Relay
37Timer Knob Assembly
383936144 Whirlpool Connector
39Bracket, Control
40Panel, Control
