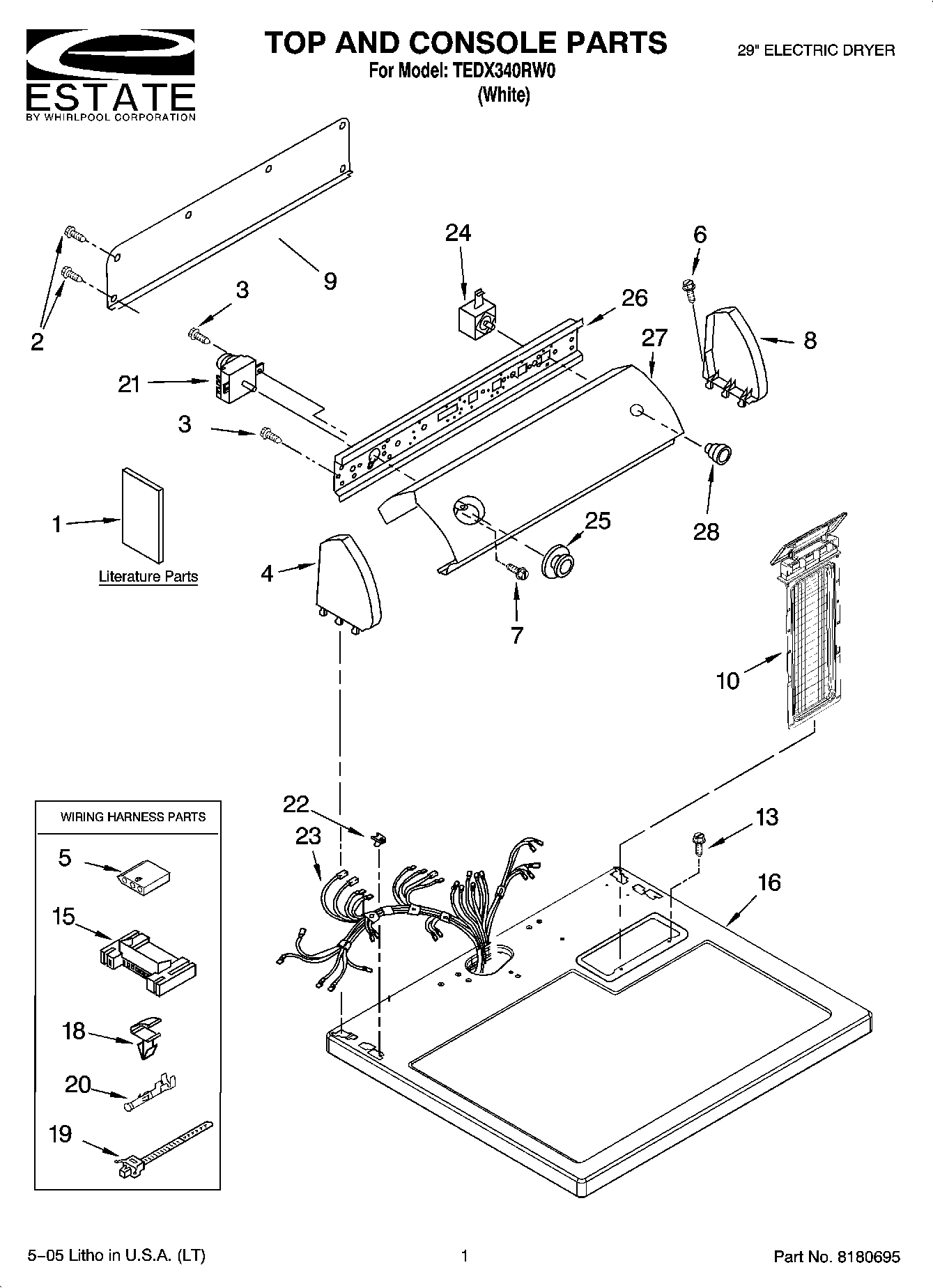

TEDX340RW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Sheet, Cycle Feature
1	Guide, Use & Care
1	Instructions, Installation
1	Wiring Diagram
1	WPL 677818
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP693995 Whirlpool Screw
3	WP90767 Whirlpool Screw
4	Cap, End (L.H.)
5	3936144 Whirlpool Connector
6	WP388326 Whirlpool Screw
7	3400859 Whirlpool Screw
8	Cap, End (R.H.)
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
15	3395683 Whirlpool Connector
16	Top
18	WP3394427 Whirlpool Clip
19	Tie, Cable
20	WP94614 Whirlpool Terminal
21	WP8299780 Whirlpool Timer
22	WP357213 Whirlpool Hinge Stopper
23	Harness, Wiring
24	WP3977456 Whirlpool Start Switch
25	Timer Knob Assembly
26	Bracket, Control
27	Panel, Control
28	WP3352875 Whirlpool Knob
