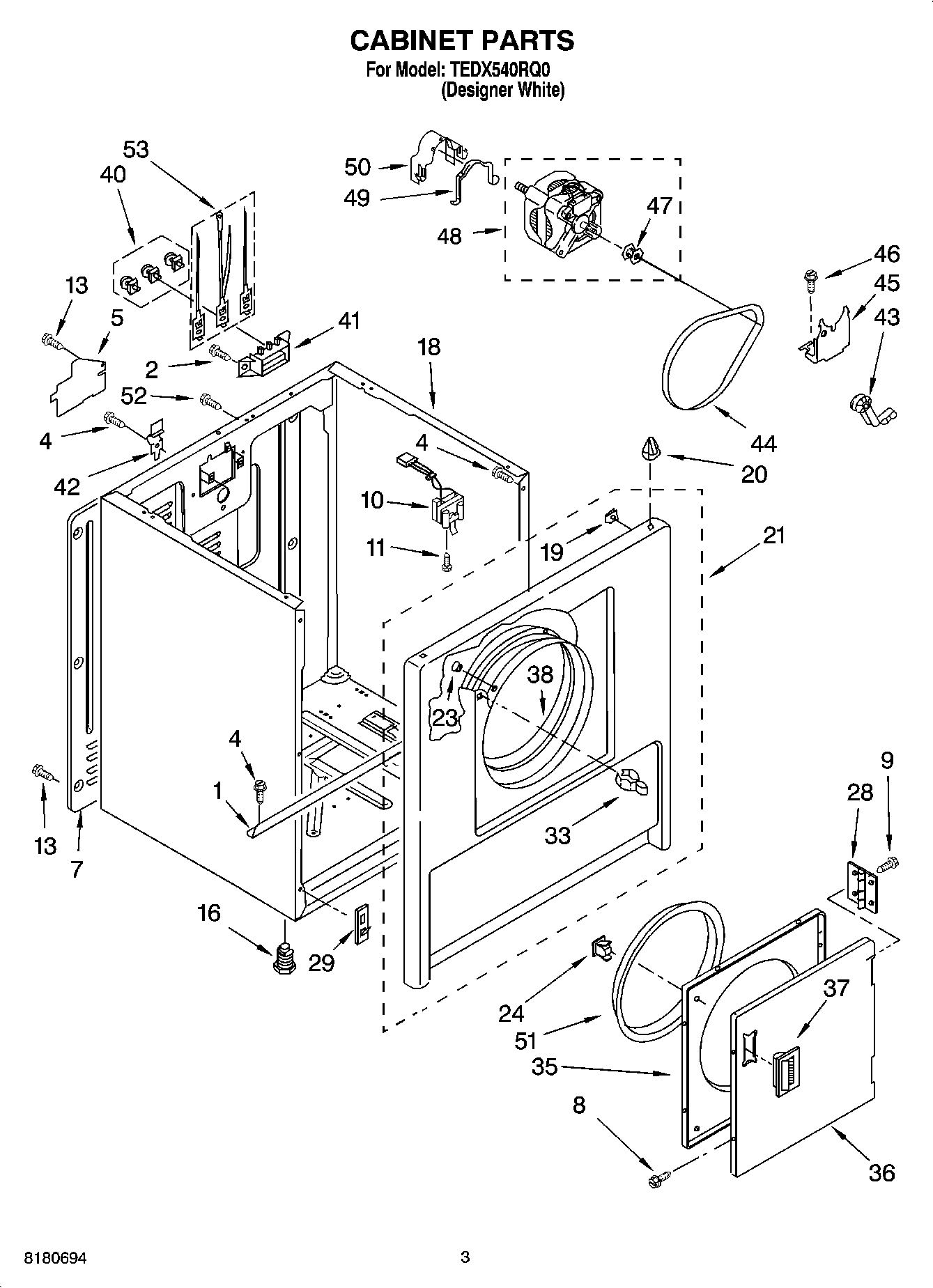

TEDX540RQ0 02 – CABINET PARTS

Products

Position	Product
1	Bracket, Cabinet
2	WP308685 Whirlpool Microwave Screw
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	WP694091 Whirlpool Screw
10	WP3406102 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
13	WP693995 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel (White)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
28	WP348023 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	WP3397659 Whirlpool Terminal Block
42	WP8066217 Whirlpool Hinge
43	WP691366 Whirlpool Dryer Idler Pulley Assembly
44	341241 Whirlpool Dryer Drum Belt
45	WP348780 Whirlpool Base
46	3400500 Whirlpool Screw
47	WP8066184 Whirlpool Dryer Motor Pulley
48	279827 Whirlpool Dryer Drive Motor
49	WP660658 Whirlpool Clamp
50	WP3404162 Whirlpool Clamp
51	W11613302 Whirlpool Door Seal
52	W10850756 Whirlpool Screw
53	279318 Whirlpool Terminal
