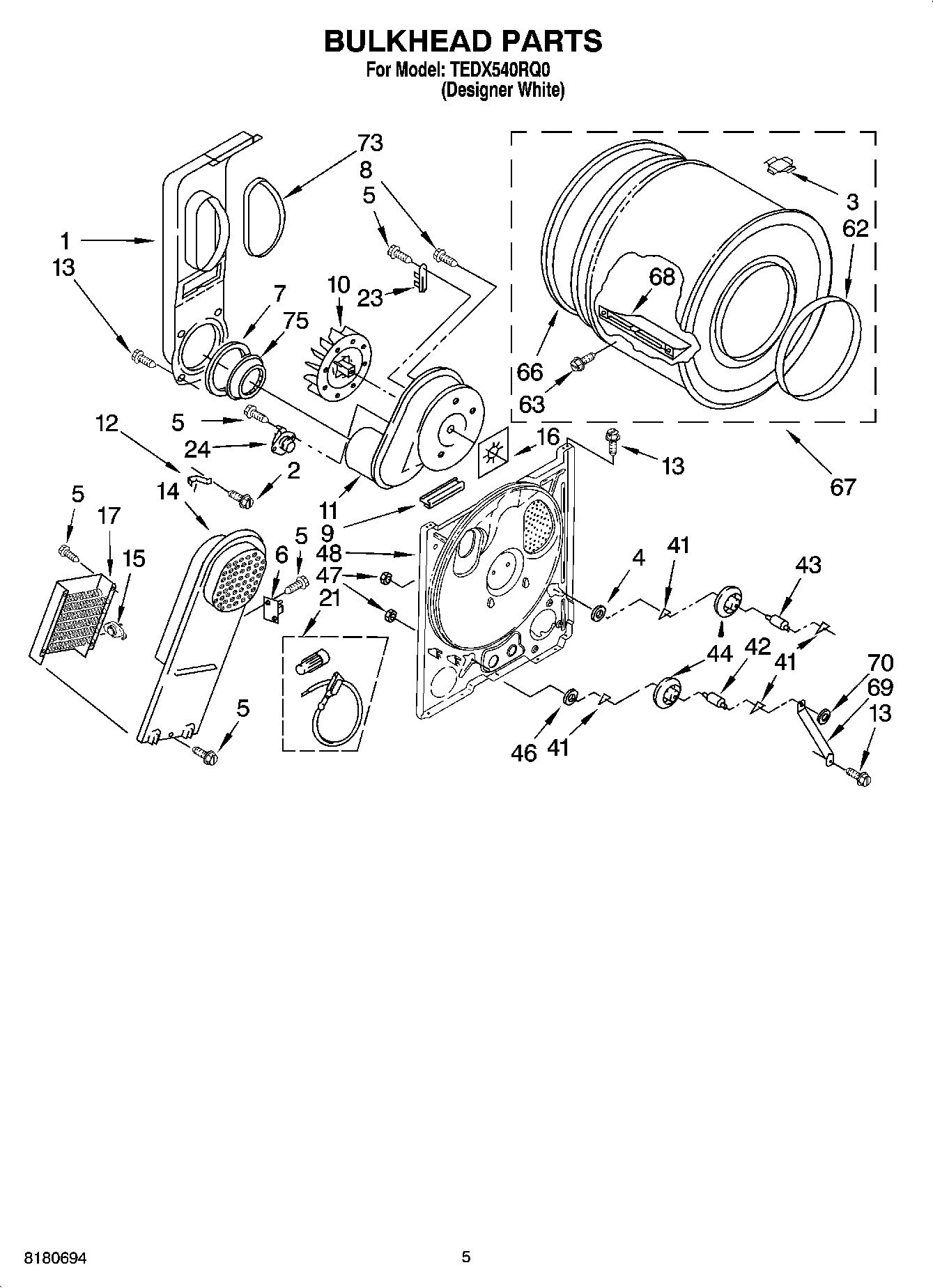

TEDX540RQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS
	4392065 Whirlpool Dryer Maintenance Kit
	WP689790 Whirlpool Dryer Rack
	W11224254 Whirlpool Test Kit
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	279505 Whirlpool Chute
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	WP488729 Whirlpool Refrigerator Door Screw
9	686889 Whirlpool Pad
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	Seal, Blower
17	279838 Whirlpool Dryer Heating Element 5400W
21	279457 Whirlpool Dryer Heating Element Wide Spade Connection
23	WP3392519 Whirlpool Dryer Thermal Fuse
24	WP694674 Whirlpool Cycling Thermostat
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	BULKHEAD
62	WP3394508 Whirlpool Bearing Ring
63	WPW10109200 Whirlpool Screw
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
75	W11233063 Whirlpool Shield Assembly
