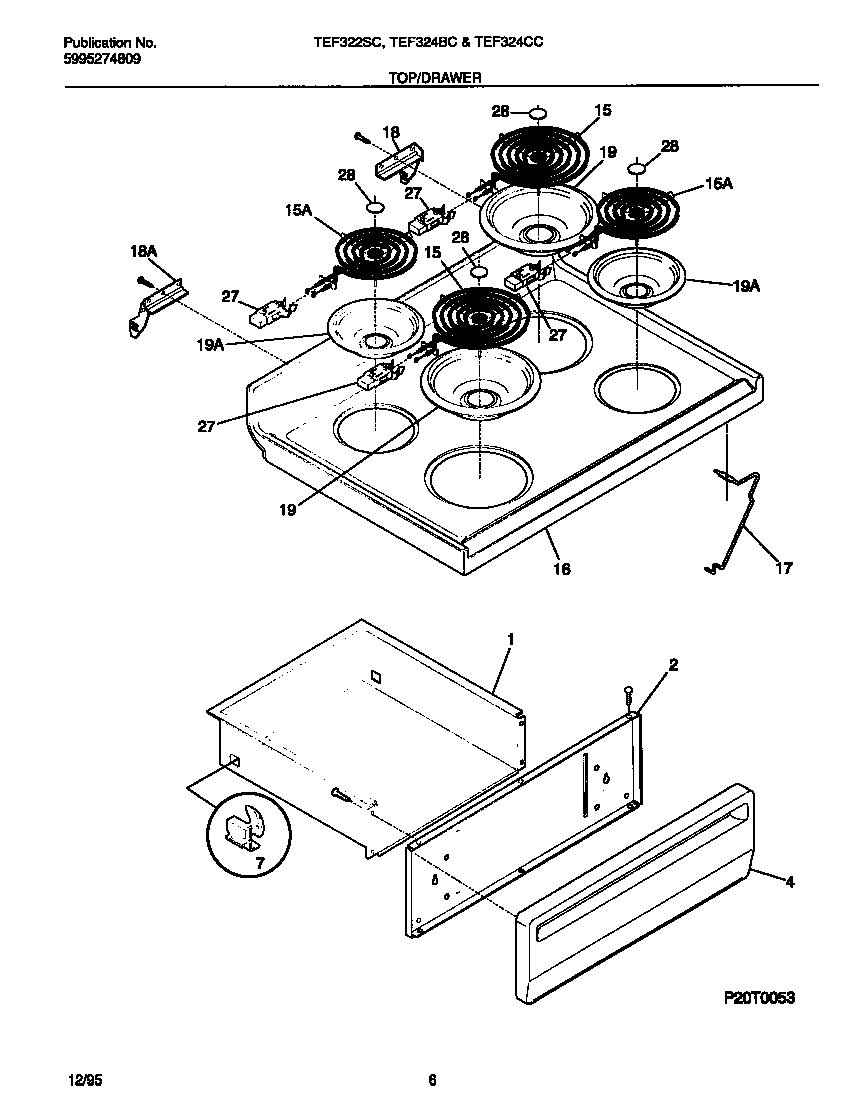

TEF322SCWB 04 – TOP/DRAWER

TEF322SCWB 04 – TOP/DRAWER

Written by

in

TEF322SCWB 04 – TOP/DRAWER

Products

PositionProduct
*91247WCI 316001725
*91249131243700 Frigidaire Screw
*91248WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
155308011964 Frigidaire Surface Element P1
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
