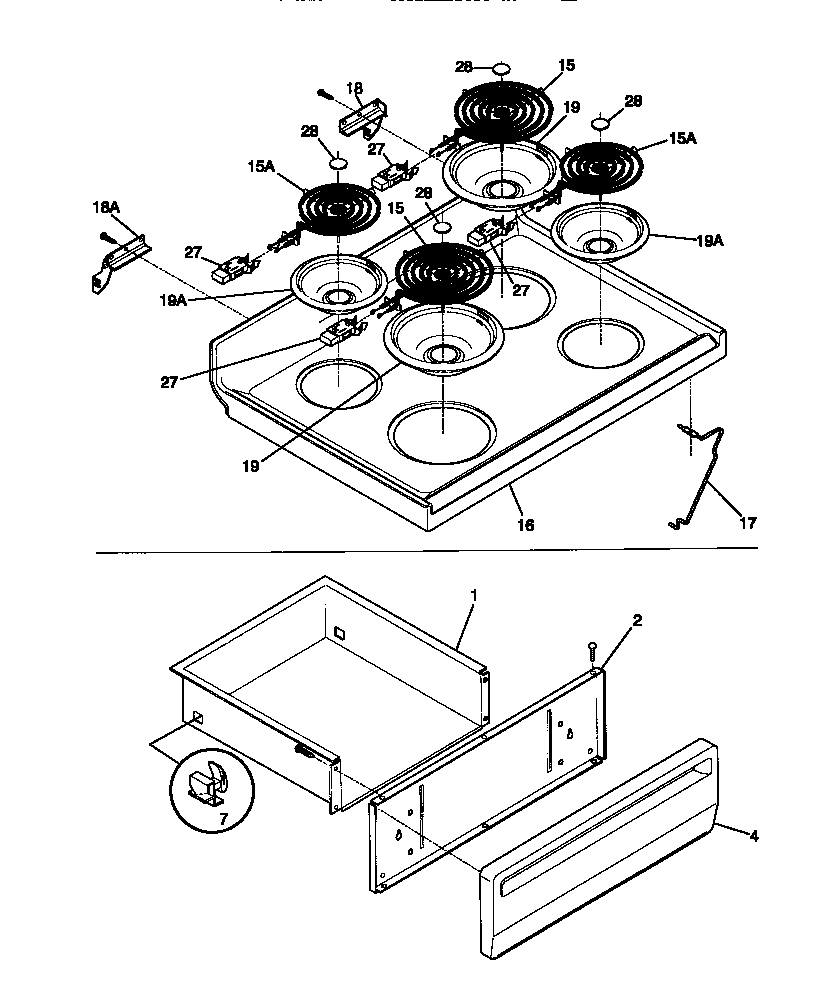

TEF324BCDA 04 – TOP/DRAWER

Products

Position	Product
*69647	WCI 316001725
*69645	WCI 5303281584
*69646	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A	A316222201 Frigidaire Oven Drip Bowl Assembly
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28A	5303017715 Frigidaire Medallion
28	MEDALLION, STAINLESS STEEL, SURF ELEM
