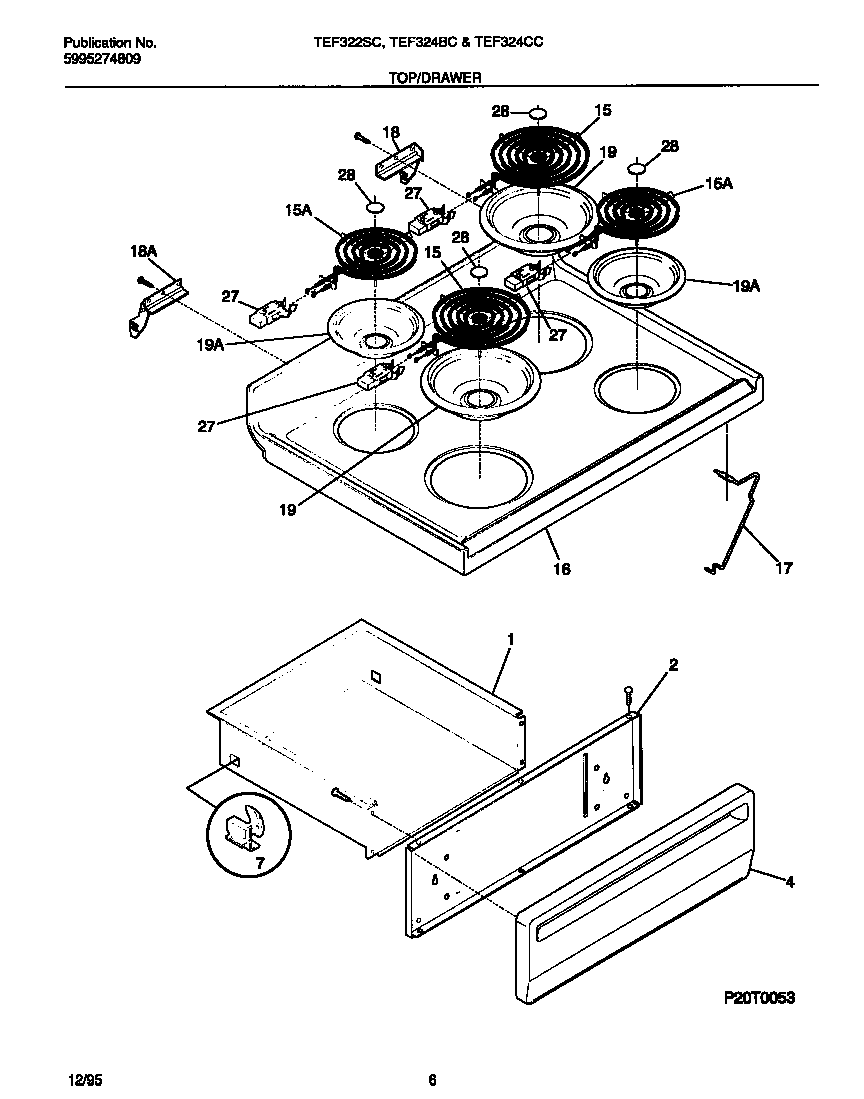

TEF324BCDB 04 – TOP/DRAWER

Products

Position	Product
*91247	WCI 316001725
*91248	WCI 5303281584
*91249	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19	A316222201 Frigidaire Oven Drip Bowl Assembly
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
28	MEDALLION, STAINLESS STEEL, SURF ELEM
