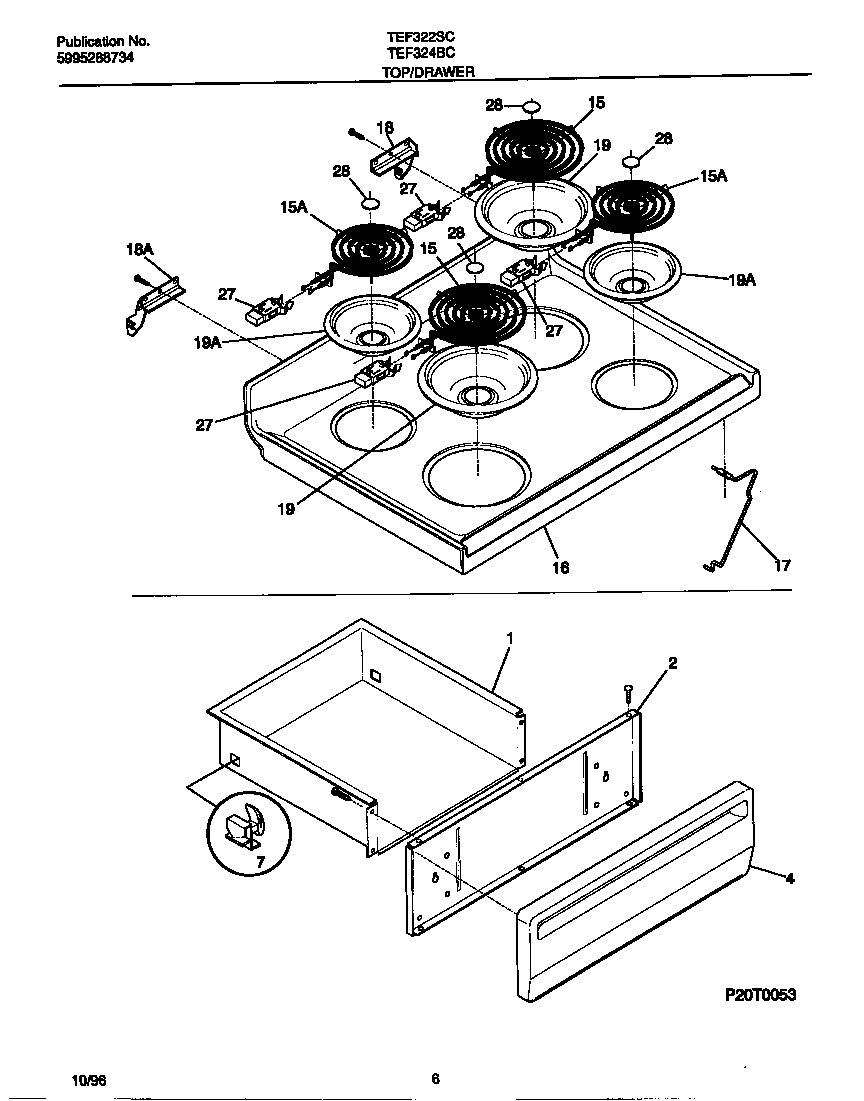

TEF324BCDC 04 – TOP/DRAWER

Products

PositionProduct
*35367WCI 316001725
*35368WCI 5303281584
*35369131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
