TEF324BCWA 04 – TOP/DRAWER

TEF324BCWA 04 – TOP/DRAWER

Written by

in

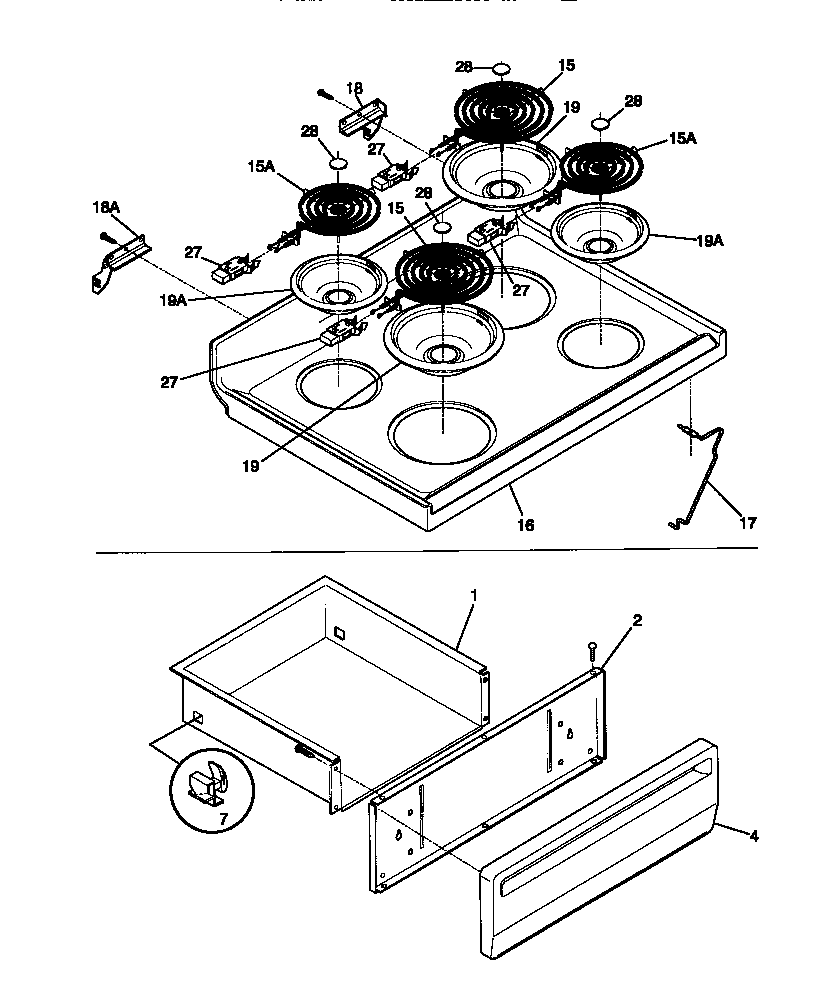

TEF324BCWA 04 – TOP/DRAWER

Products

PositionProduct
*69647WCI 316001725
*69645WCI 5303281584
*69646131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
28A5303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
