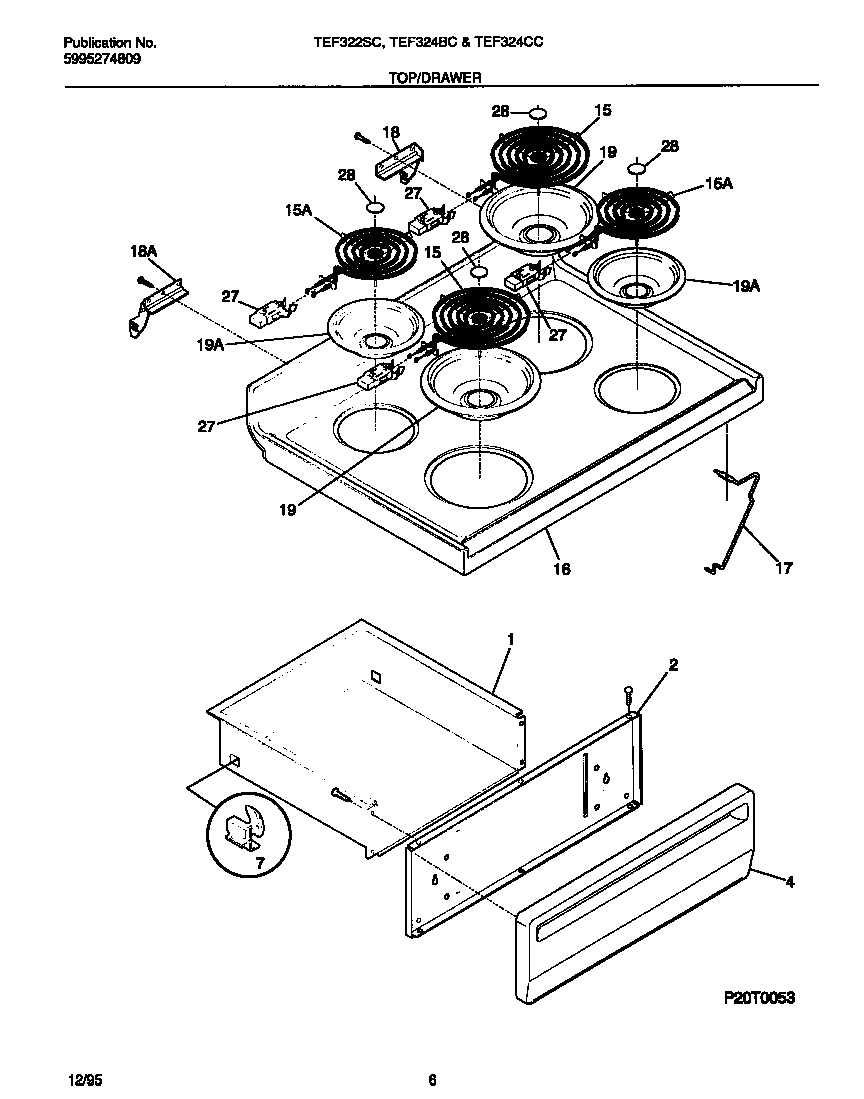

TEF324BCWB 04 – TOP/DRAWER

TEF324BCWB 04 – TOP/DRAWER

Written by

in

TEF324BCWB 04 – TOP/DRAWER

Products

PositionProduct
*91247WCI 316001725
*91248WCI 5303281584
*91249131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19A316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
