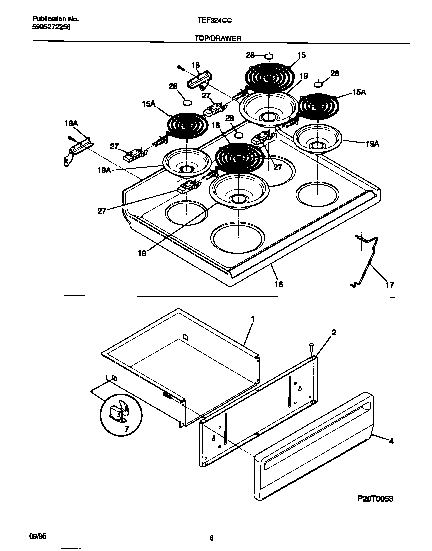

TEF324CCSA 04 – TOP/DRAWER

TEF324CCSA 04 – TOP/DRAWER

Written by

in

TEF324CCSA 04 – TOP/DRAWER

Products

PositionProduct
*18247WCI 316001725
*18245WCI 5303281584
*18246131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16316202388 Frigidaire Oven Maintop
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
19WCI 316048408
19WCI 316048411
275303935058 Frigidaire Oven Burner Receptacle Kit
285303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
