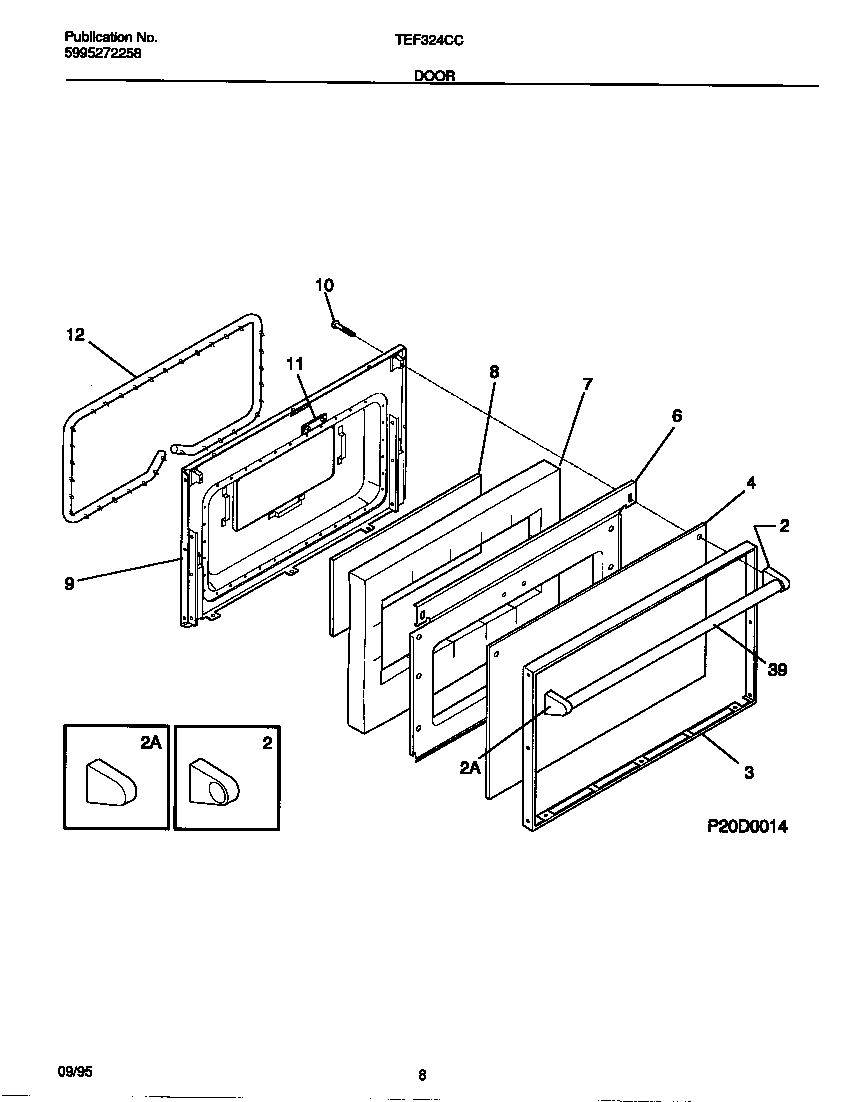

TEF324CCSA 05 – DOOR

TEF324CCSA 05 – DOOR

Written by

in

TEF324CCSA 05 – DOOR

Products

PositionProduct
*18249SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*18248WCI 316071600
*18255131243700 Frigidaire Screw
*18253WCI 5303280311
*182525303271648 Frigidaire Oven Screw
*18251WCI 5303269859
*182545303285179 Frigidaire Oven Door Screw
*182505303300265 Frigidaire Oven Screw
3WCI 316067804
4WCI 316019710
6SHIELD-INSULATION, WHITE
7WCI 316076401
8WCI 316050303
9WCI 316066603
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303202011 Frigidaire Door Seal
39WCI 316008305
49WCI 5303307194
49WCI 5303307195
60COVER-OVEN FRONT
