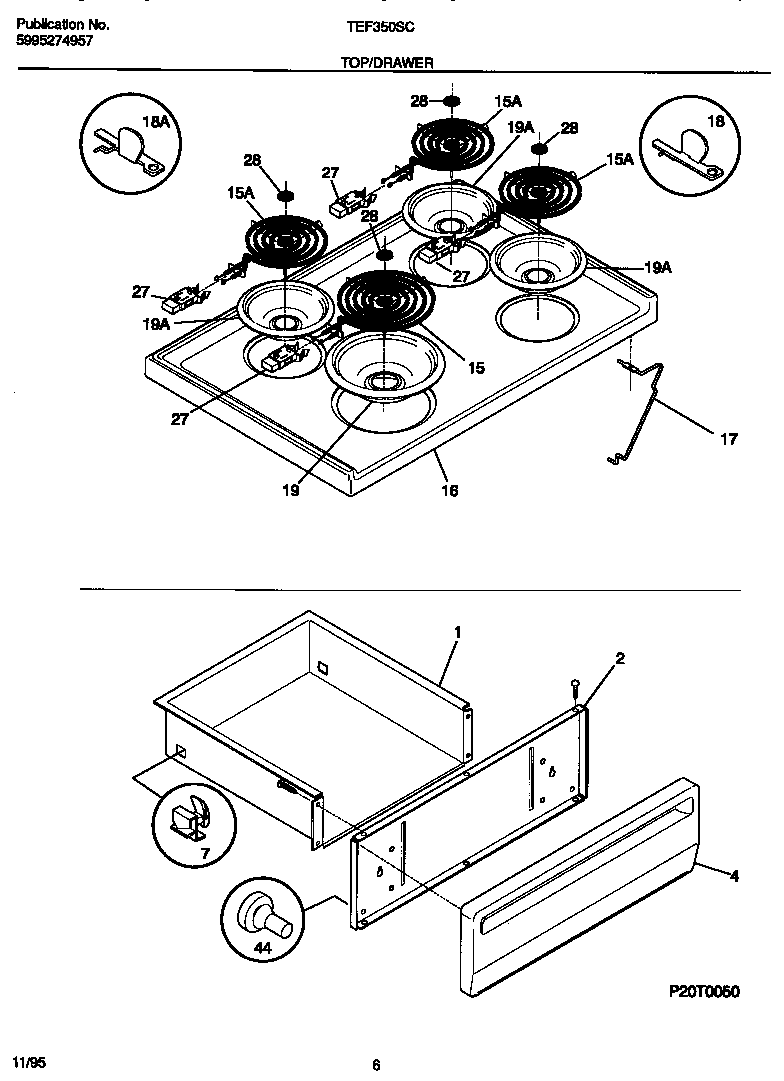

TEF350SCWB 04 – TOP/DRAWER

TEF350SCWB 04 – TOP/DRAWER

Written by

in

TEF350SCWB 04 – TOP/DRAWER

Products

PositionProduct
*02169316580408 Frigidaire Oven Harness
*02167RIVET-POP, WARING-PLATE
*02168WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372210 Frigidaire Oven Range 6" 1250W Surface Element
15316442300 Frigidaire Oven 2100W Coil Element 8
16WCI 3051379
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
