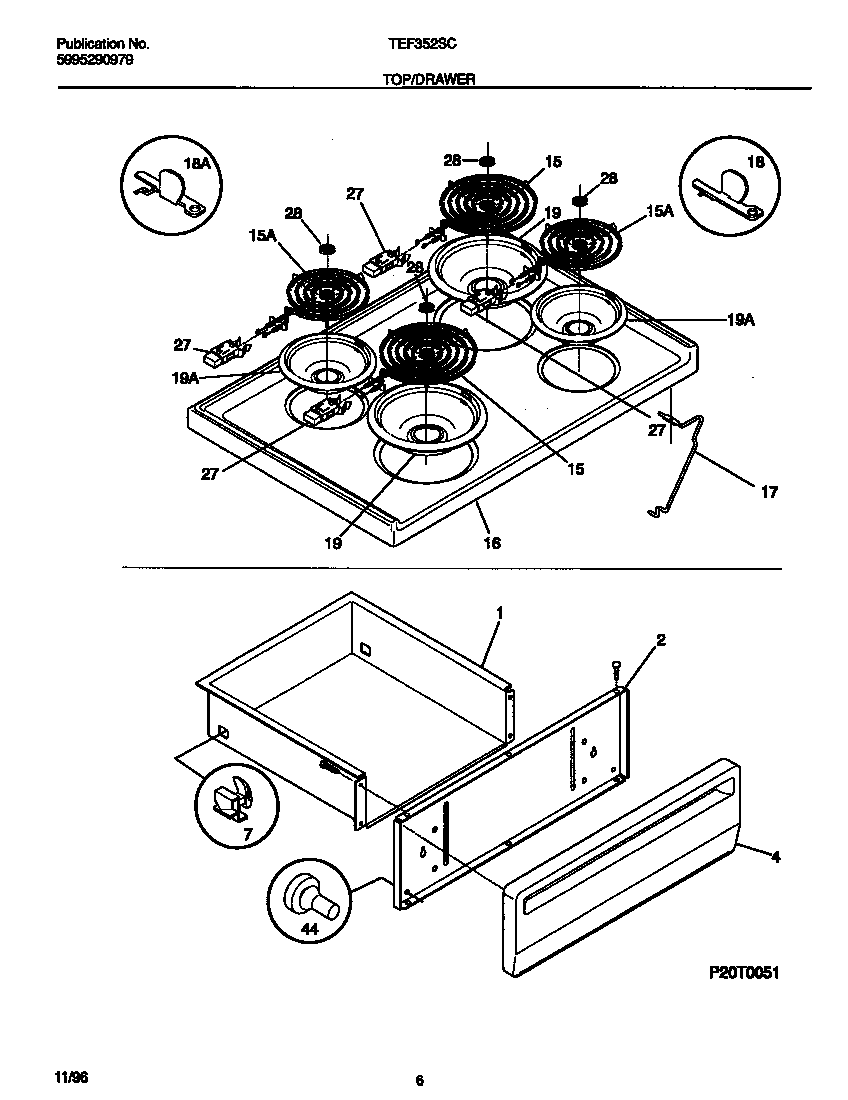

TEF352SCDD 04 – TOP/DRAWER

TEF352SCDD 04 – TOP/DRAWER

Written by

in

TEF352SCDD 04 – TOP/DRAWER

Products

PositionProduct
*11925RIVET-POP, WARING-PLATE
*11929WCI 316001725
*11928131243700 Frigidaire Screw
*11926Screw,cup pt ,8-18 x 0.375 ,chrome
*11927WCI 5303280311
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
4316021109 Frigidaire Oven Screw
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28B5303017715 Frigidaire Medallion
28AMEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
