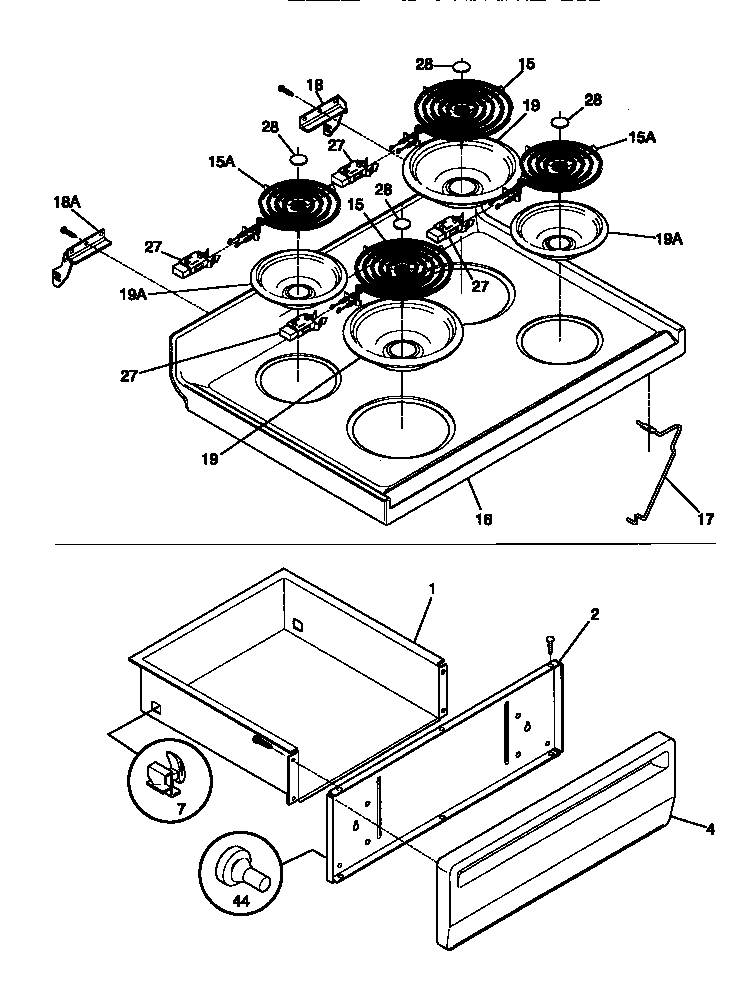

TEF354BCDA 04 – TOP/DRAWER

TEF354BCDA 04 – TOP/DRAWER

Written by

in

TEF354BCDA 04 – TOP/DRAWER

Products

PositionProduct
*16485RIVET-POP, WARING-PLATE
*16488WCI 316001725
*16486WCI 5303281584
*16487131243700 Frigidaire Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 316020908
17316057601 Frigidaire Oven Rod
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
19AA316222201 Frigidaire Oven Drip Bowl Assembly
275303935058 Frigidaire Oven Burner Receptacle Kit
28A5303017715 Frigidaire Medallion
28MEDALLION, STAINLESS STEEL, SURF ELEM
443131903 Frigidaire Door/Drawer Bumper
