TEF356SCWD 04 – TOP/DRAWER

TEF356SCWD 04 – TOP/DRAWER

Written by

in

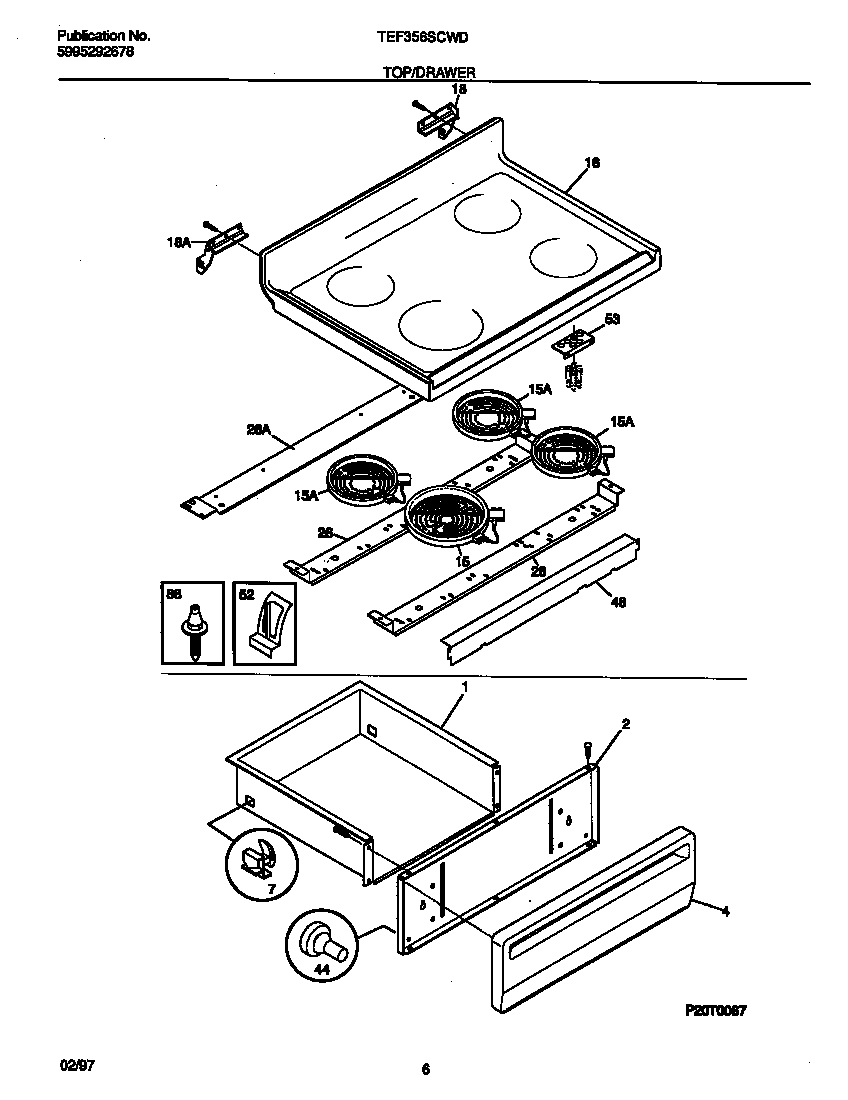

TEF356SCWD 04 – TOP/DRAWER

Products

PositionProduct
*00725RIVET-POP, WARING-PLATE
*00727WCI 316089600
*00729131243700 Frigidaire Screw
*00730WCI 5309951550
*00728WCI 5303280311
*00731WCI 316001740
*00726Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4316021109 Frigidaire Oven Screw
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316098106
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099101
26WCI 316099201
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
88316099500 Frigidaire Oven Pin
