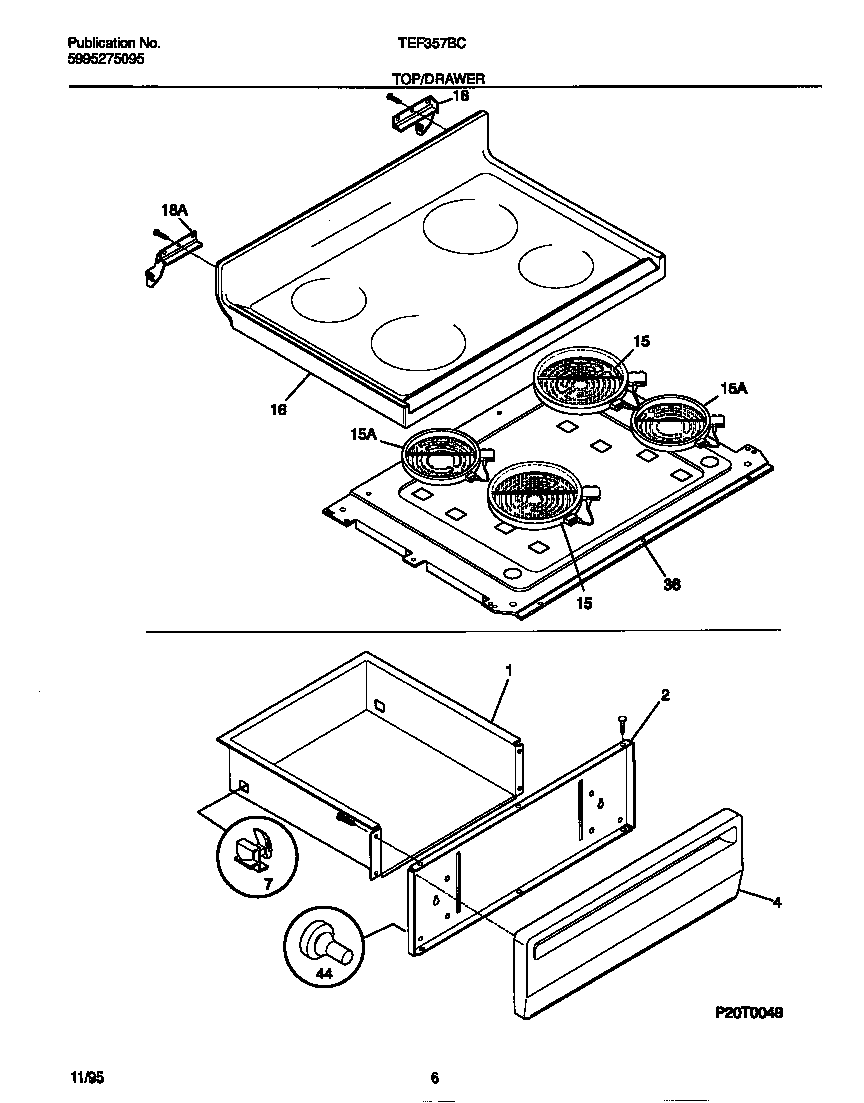

TEF357BCDB 04 – TOP/DRAWER

TEF357BCDB 04 – TOP/DRAWER

Written by

in

TEF357BCDB 04 – TOP/DRAWER

Products

PositionProduct
*23126RIVET-POP, WARING-PLATE
*23129WCI 5309951550
*23130WCI 316001733
*23128131243700 Frigidaire Screw
*23127WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198834 Frigidaire Oven Element
15318198817 Frigidaire Oven Element
16WCI 316035501
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
443131903 Frigidaire Door/Drawer Bumper
