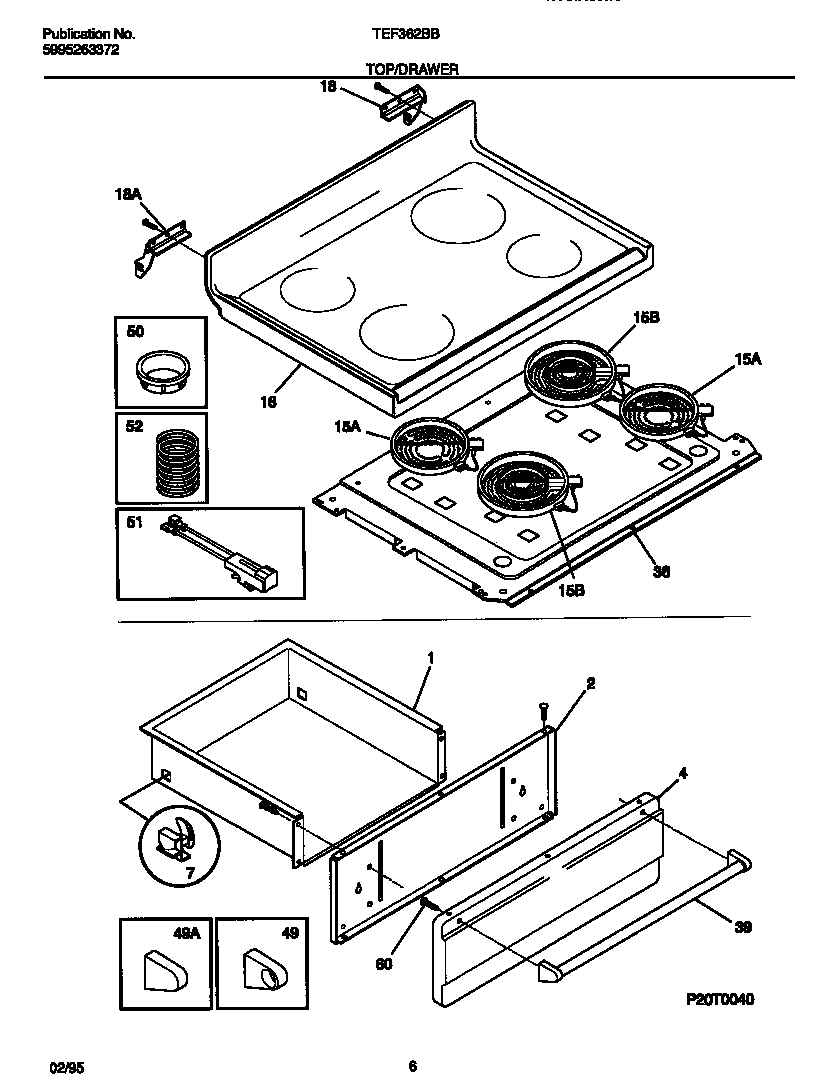

TEF362BBBA 04 – TOP/DRAWER

Written by

Products

Position	Product
*62216	LENS-LIGHT/LAMP, INDICATOR
*62214	WCI 5303281584
*62212	WCI 5309951550
*62213	WCI 5303288574
*62215	WCI 316078000
1	DRAWER-UTILITY
2	WCI 316063503
4	WCI 316056209
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	LIMITER SWITCH, LARGE/8“, DUAL COIL (NON-ILLUSTRATED)
15	WCI 316049700
15	WCI 5303305628
15	318178110 Frigidaire Oven Range 6" Surface Element
16	WCI 316035527
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
18	131243700 Frigidaire Screw
36	WCI 316023301
36	WCI 316077901
36	WCI 316041001
39	WCI 316008306
49	WCI 5303307192
49	WCI 5303307193
50	WCI 316072100
51	WCI 316034801
52	WCI 316078100
