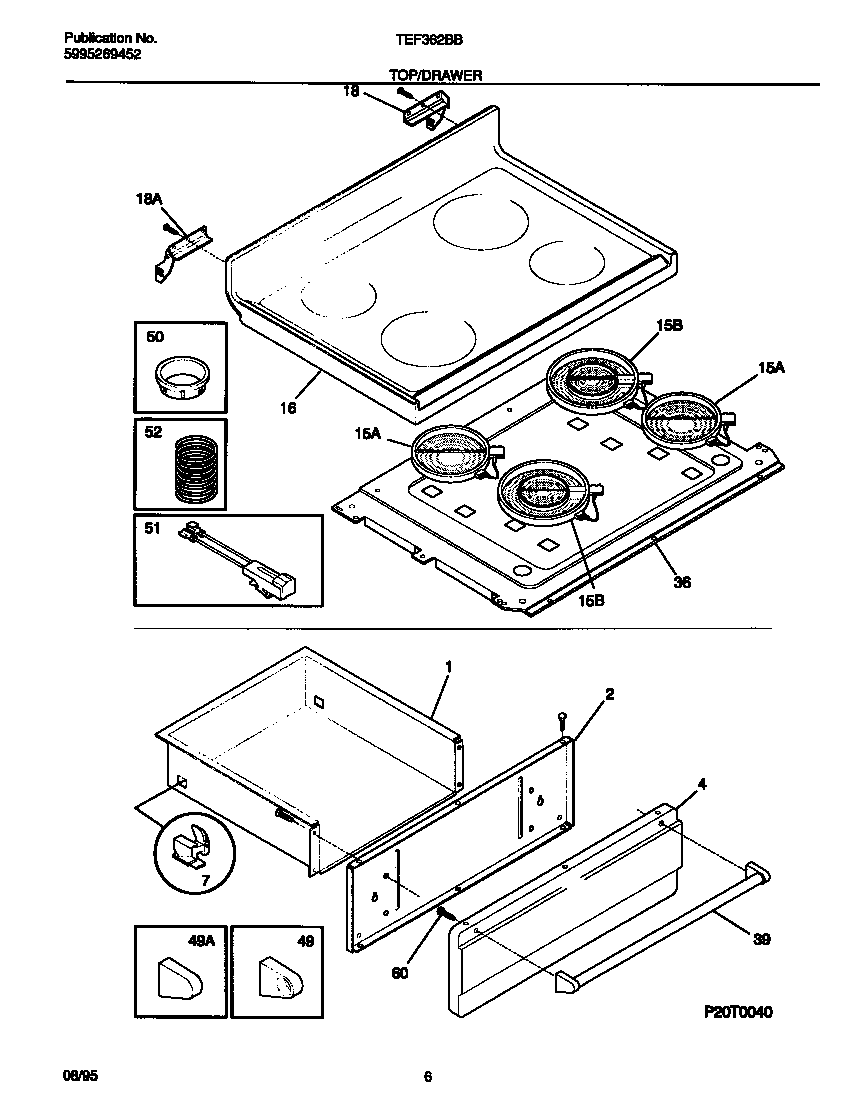

TEF362BBBB 04 – TOP/DRAWER

TEF362BBBB 04 – TOP/DRAWER

Written by

in

TEF362BBBB 04 – TOP/DRAWER

Products

PositionProduct
*00492RIVET-POP, WARING-PLATE
*00498WCI 5309951550
*00497131243700 Frigidaire Screw
*004933131903 Frigidaire Door/Drawer Bumper
*00494LENS-LIGHT/LAMP, INDICATOR
*00495WCI 316078000
*00496WCI 5303281584
1DRAWER-UTILITY
2WCI 316063503
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056209
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15WCI 316049700
15WCI 5303305628
15318178110 Frigidaire Oven Range 6" Surface Element
16WCI 316035527
16GUSSET-MTG (LH) (NON-ILLUSTRATED)
16GUSSET-MTG (RH) (NON-ILLUSTRATED)
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36WCI 316041001
36WCI 316077901
36WCI 316023301
39WCI 316008306
49WCI 5303307192
49WCI 5303307193
50WCI 316072100
51WCI 316034801
52WCI 316078100
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
