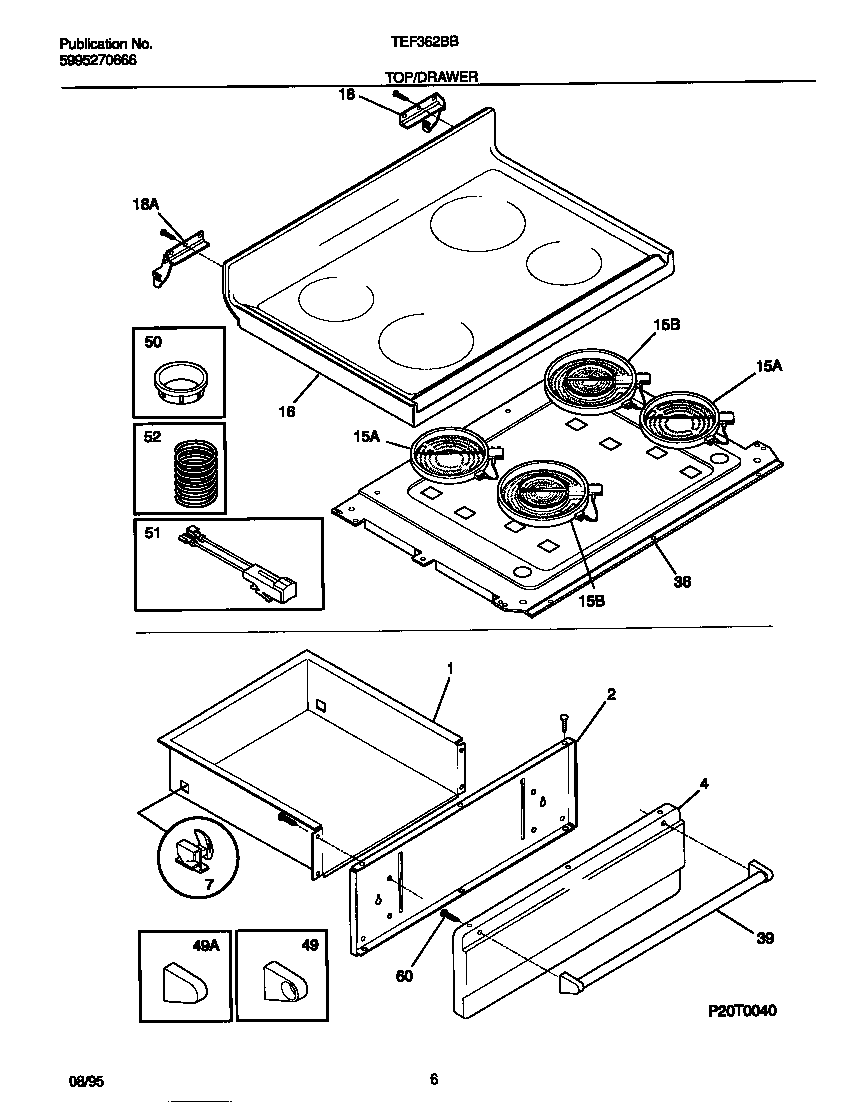

TEF362BBBC 04 – TOP/DRAWER

Written by

Products

Position	Product
*77411	RIVET-POP, WARING-PLATE
*77414	131243700 Frigidaire Screw
*77410	3131903 Frigidaire Door/Drawer Bumper
*77416	WCI 5309951550
*77415	WCI 5303288574
*77413	WCI 5303281584
*77412	WCI 316078000
1	DRAWER-UTILITY
2	WCI 316063503
4	WCI 316056209
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	WCI 316049700
15	WCI 5303305628
15	318178110 Frigidaire Oven Range 6" Surface Element
16	WCI 316035527
16	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36	WCI 316023301
36	WCI 316041001
36	WCI 316077901
39	WCI 316008306
49	WCI 5303307192
49	WCI 5303307193
50	WCI 316072100
51	WCI 316034801
52	WCI 316078100
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
