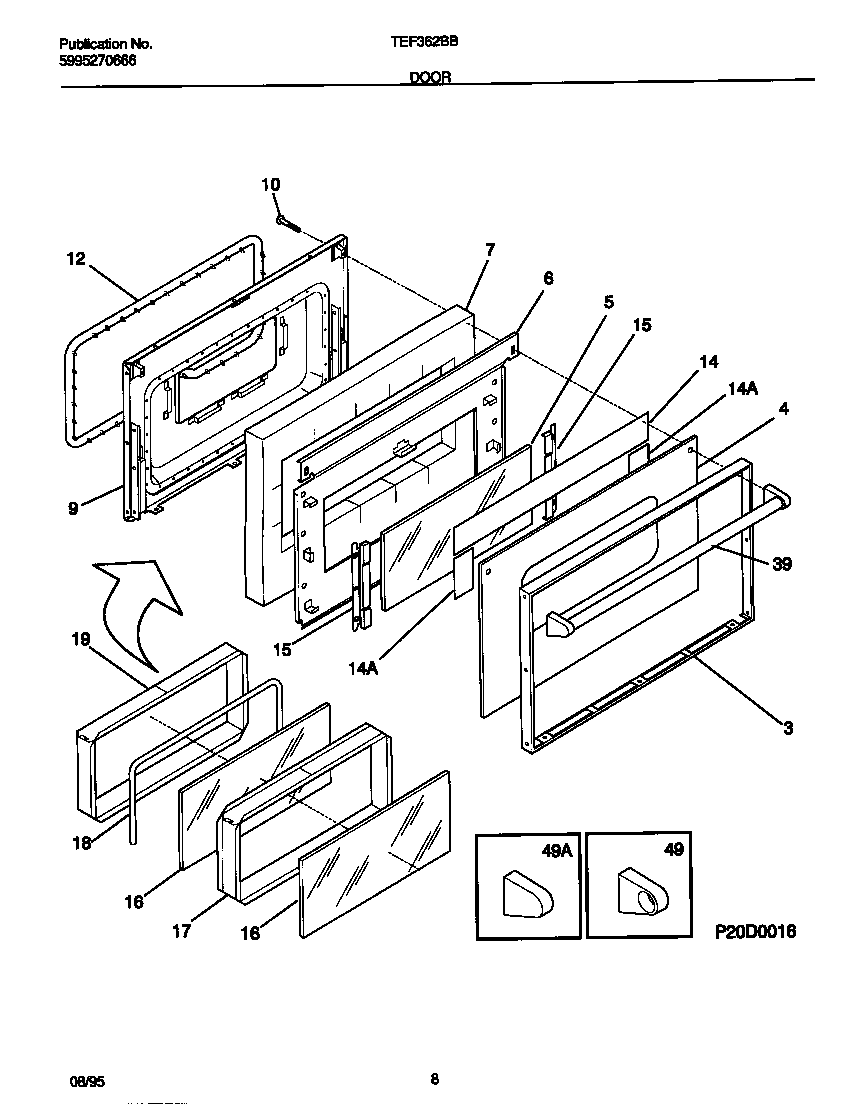

TEF362BBBC 05 – DOOR

Products

Position	Product
*77417	WCI 316065300
*77422	WCI 5303280311
*77421	5303271648 Frigidaire Oven Screw
*77424	131243700 Frigidaire Screw
*77423	5303285179 Frigidaire Oven Door Screw
*77419	5303300265 Frigidaire Oven Screw
*77420	WCI 5303269859
*77418	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
3	WCI 316067802
4	GLASS-OVEN DOOR, BLACK, OUTER
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	WCI 316076400
9	WCI 316066603
10	WCI 5303280308
12	5303131601 Frigidaire Oven Seal
14	5303208655 Frigidaire Reflector Assembly
14	REFLECTOR, ALUMINUM FOIL
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	WCI 316008306
49	WCI 5303307192
49	WCI 5303307193
