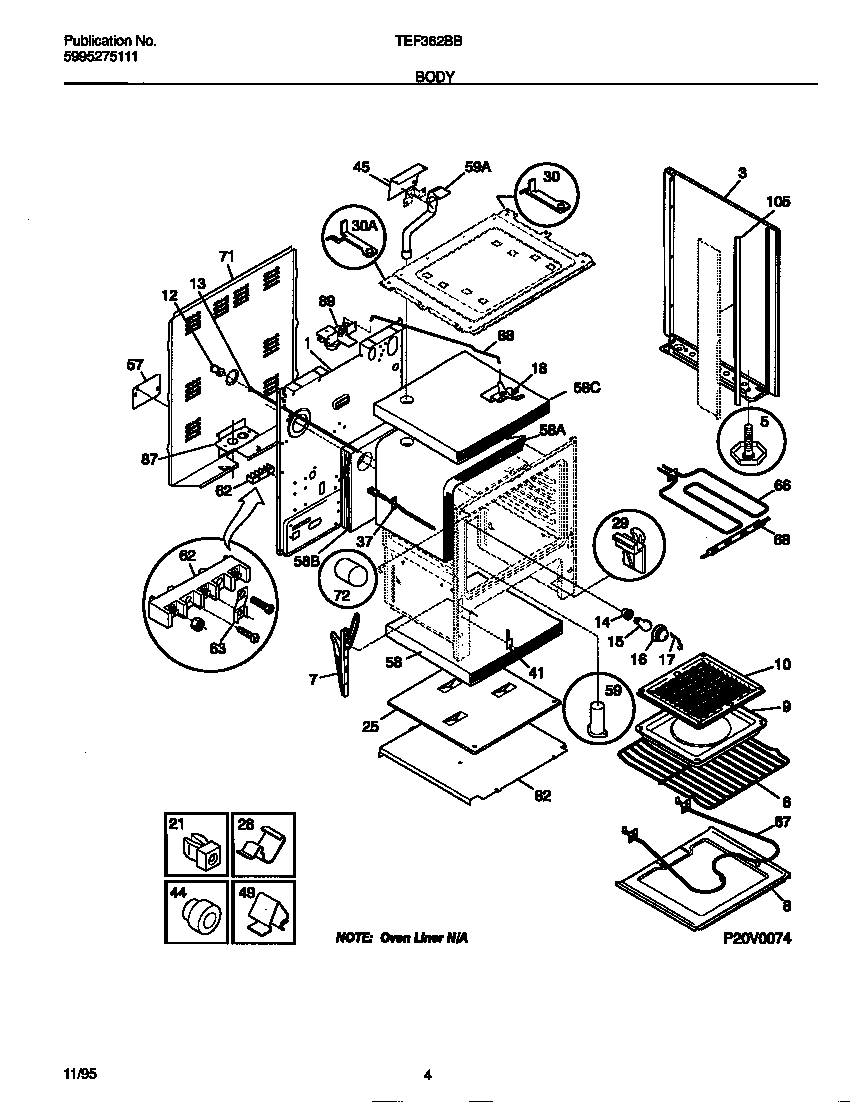

TEF362BBBD 03 – BODY

TEF362BBBD 03 – BODY

Written by

in

TEF362BBBD 03 – BODY

Products

PositionProduct
*61009WCI 5303281584
*61006SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*61010WCI 316001342
*61008316205500 Frigidaire Oven Nut
*610073203550 Frigidaire Oven Plug
1WCI 316080801
3WCI 316081003
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081002
5WCI 3934058
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5316116000 Frigidaire Screw
65304531722 Frigidaire Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
493205821 Frigidaire Clip
57WCI 316081101
58316047707 Frigidaire Insulation
58316054202 Frigidaire Insulation
58INSULATION, OVEN TOP
58316403803 Frigidaire Insulation
59WCI 316023600
59BRACKET-VENT TUBE (NOT ILLUSTRATED)
59WCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89WCI 316028101
105WCI 316071900
