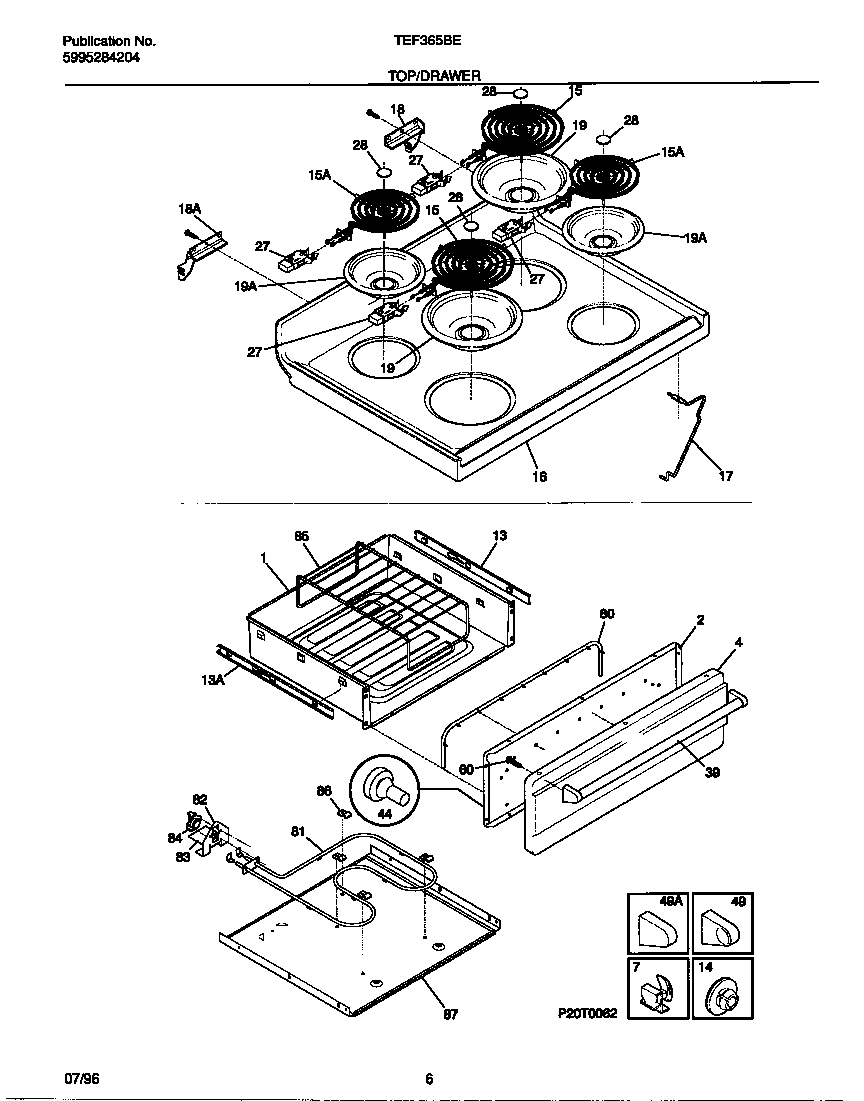

TEF365BEDA 04 – TOP/DRAWER

Products

Position	Product
*25087	RIVET-POP, WARING-PLATE
*25090	131243700 Frigidaire Screw
*25088	WCI 316001725
*25089	Screw,cup pt ,8-18 x 0.375 ,chrome
*25086	FSTNR, SPACER (2)
1	WCI 316094601
2	WCI 316092901
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
13	WCI 316096500
13	WCI 316096501
14	WCI 3206216
15	316442301 Frigidaire Oven 8 Coil Element 2600W
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
16	WCI 316020908
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
19	A316222201 Frigidaire Oven Drip Bowl Assembly
19	A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28B	5303017715 Frigidaire Medallion
28A	MEDALLION, STAINLESS STEEL, SURF ELEM
39	WCI 316019507
44	3131903 Frigidaire Door/Drawer Bumper
49	WCI 5303307193
49	WCI 5303307192
60	316089500 Frigidaire Oven Screw
80	WCI 316093000
81	WCI 316093100
82	316093200 Frigidaire Bracket
83	WCI 316093300
84	WCI 316093500
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 316091902
