TEF365BHDA 04 – TOP/DRAWER

TEF365BHDA 04 – TOP/DRAWER

Written by

in

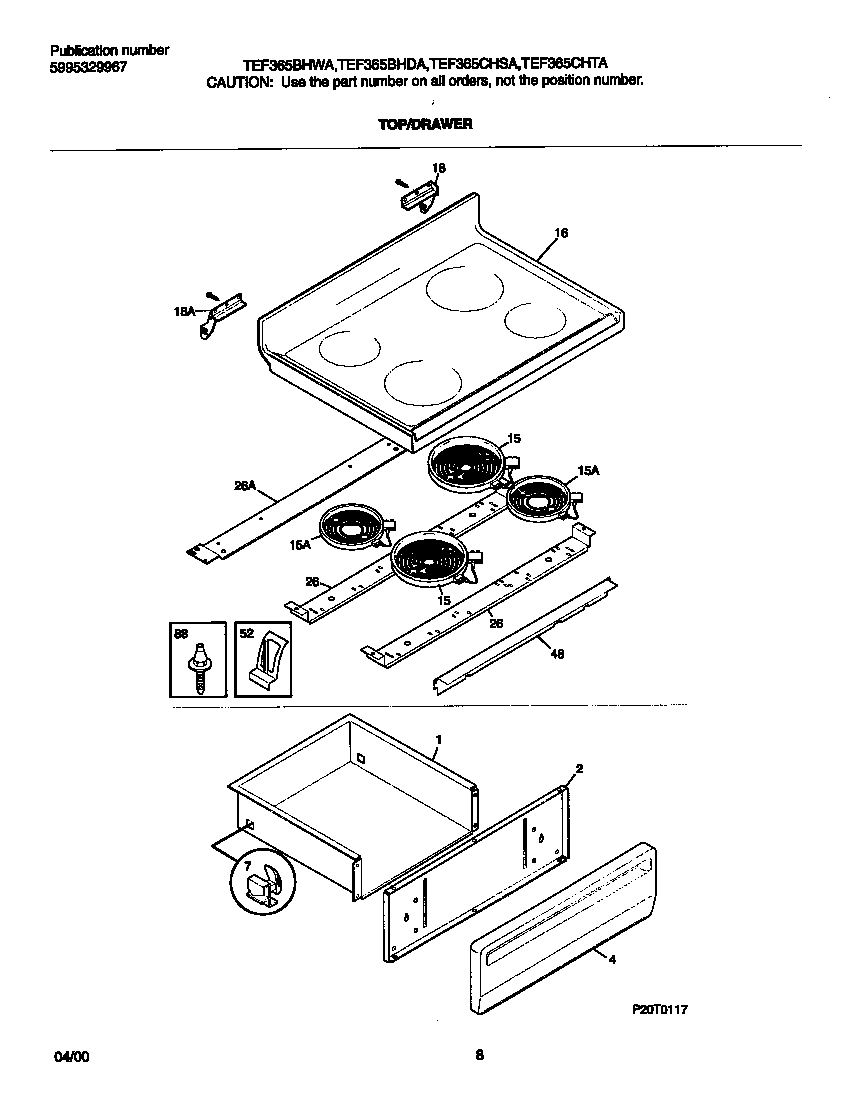

TEF365BHDA 04 – TOP/DRAWER

Products

PositionProduct
*65107316021105 Frigidaire Oven Screw
*65104WCI 316112101
*65103WCI 316089600
*65106SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*65105WCI 5303280311
*65102Clip,wiring harness ,green ,main top
*65098Screw,cup pt ,8-18 x 0.375 ,chrome
*65099316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
9WCI 316073800
10AWCI 3205234
10BWCI 5303280308
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
17WCI 316098152
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
88316099500 Frigidaire Oven Pin
