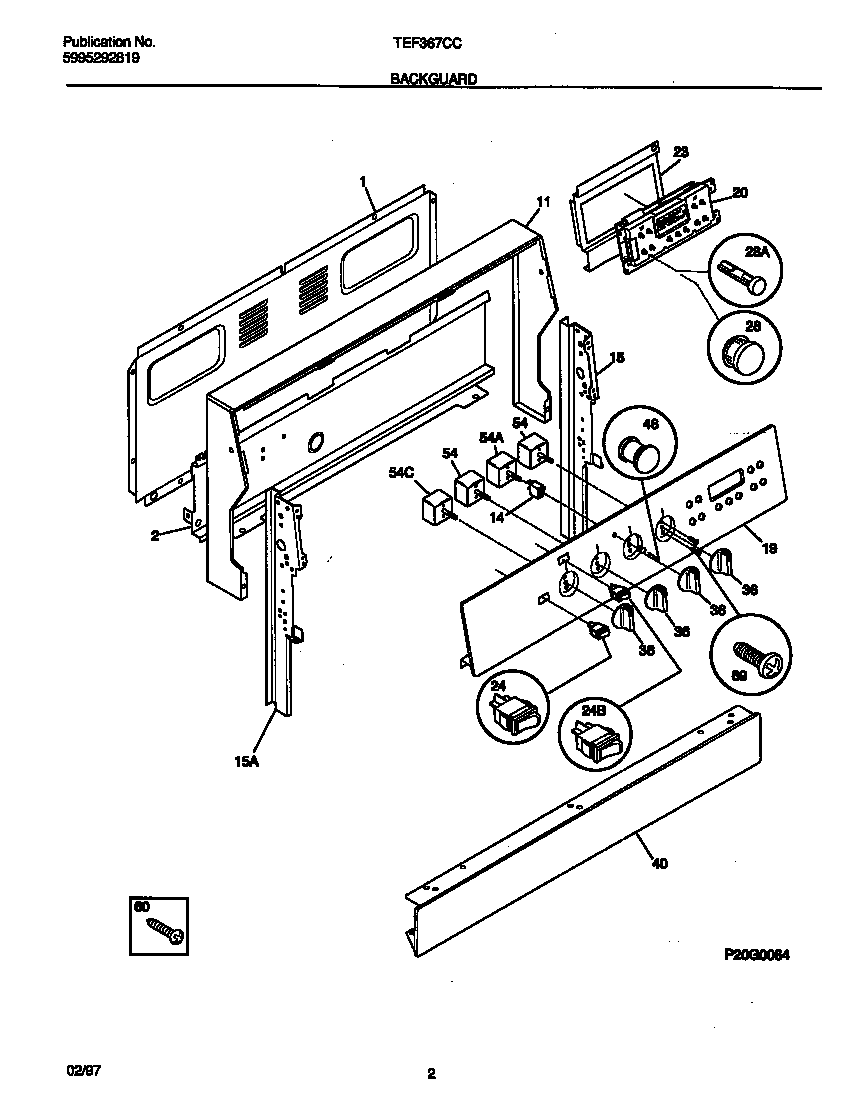

TEF367CCSD 02 – BACKGUARD

TEF367CCSD 02 – BACKGUARD

Written by

in

TEF367CCSD 02 – BACKGUARD

Products

PositionProduct
*33840Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316081601
2WCI 316015905
11WCI 316061842
14316022503 Frigidaire Light Lamp P-1
15WCI 316023110
15WCI 316023111
19WCI 316076510
20WCI 316080100
23WCI 316079003
24WCI 316086901
245304527842 Frigidaire Rocker Switch
28Shaft,push button ,black ,clock/timer/EOC
28PUSH BUTTON, CLOCK/TIMER/EOC, GRAY, (11)
36WCI 316015207
40WCI 316062330
46318228310 Frigidaire Oven Lens
54316436001 Frigidaire Oven Range Infinite Burner Switch
545304528972 Frigidaire Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
